| FUSE HOLDER | |
| ROCKER SWITCH | 904507-01 |
| POWER CONNECT FILTER | 903467-03 |
| FUSE SLOW BLO, 250V, .5A | 903555-15 |
| POWER TRANSFORMER | 320939-01 |
![[Wiring diagram]](large/page_15a.gif)

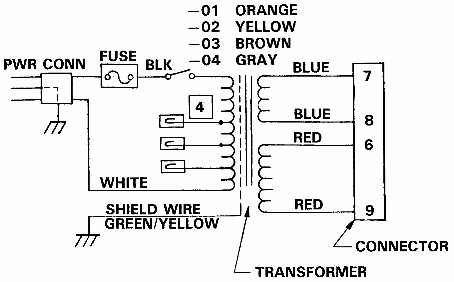

WIRING DIAGRAM
![[Assembly drawing]](large/page_15b.gif)

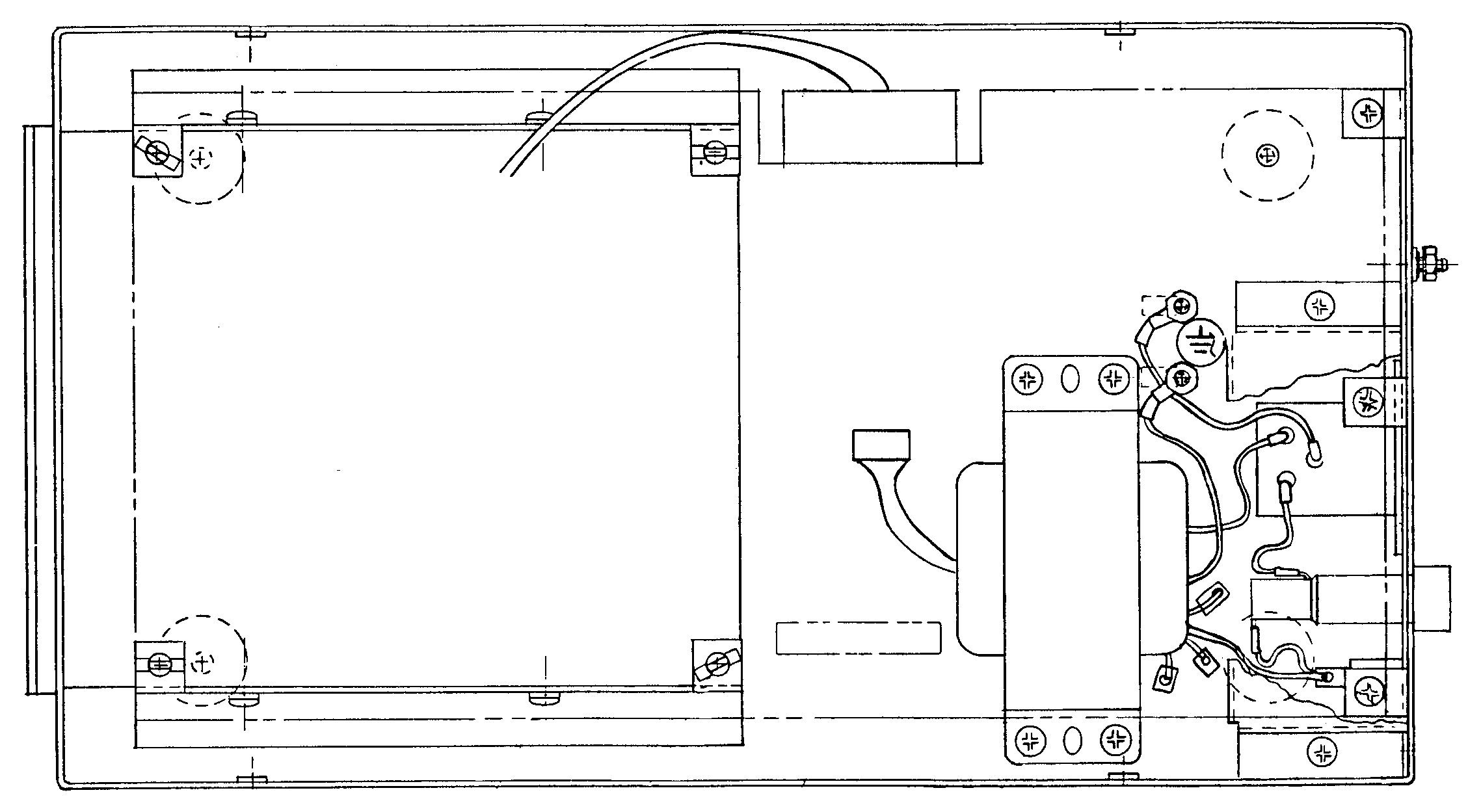

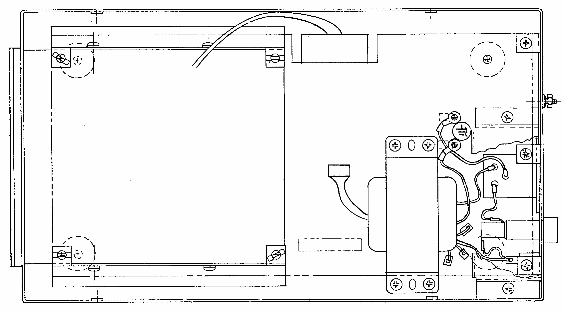

ASSEMBLY DRAWING
