SHUGART DRIVE ASSEMBLY
2031HP/2040/4040

PARTS LIST

95055000 Shugart Drive Assembly

  1. 31414001 SHU DOOR/HUB ASSEMBLY
    1. -Door Assy w/Frame
    2. -Hub/Collet Assy
  2. 31414101 SHU LEFT DISK GUIDE
  3. 31414201 SHU RIGHT DISK GUIDE
  4. 31414301 SHU FRONT BEZEL
  5. 31414401 SHU R/W HEAD ASSEMBLY
    1. -R/W Head w/Harness
    2. -Load Arm w/Pad
  6. 31414501 SHU STEPPER MOTOR ASSEMBLY
    1. -Stepper Motor w/Harness
  7. 31414601 SHU D.C. MOTOR
  8. 31414701 SHU MOTOR CONTROL PCB
  9. 31414801 SHU HOUSING/SPINDLE ASSY
    1. -Housing Base
    2. -Spindle Assy
    3. -L/R Guide Shafts
  10. 31414901 SHU DRIVE BELT
  11. 31415001 SHU WRITE PROTECT SWITCH
  12. 31415101 SHU HARDWARE
    1. -Assorted Screws
  13. 31415201 SHU CAM ACTIVATOR
  14. 903820-03 UNIV. LAMP HOLDER SET

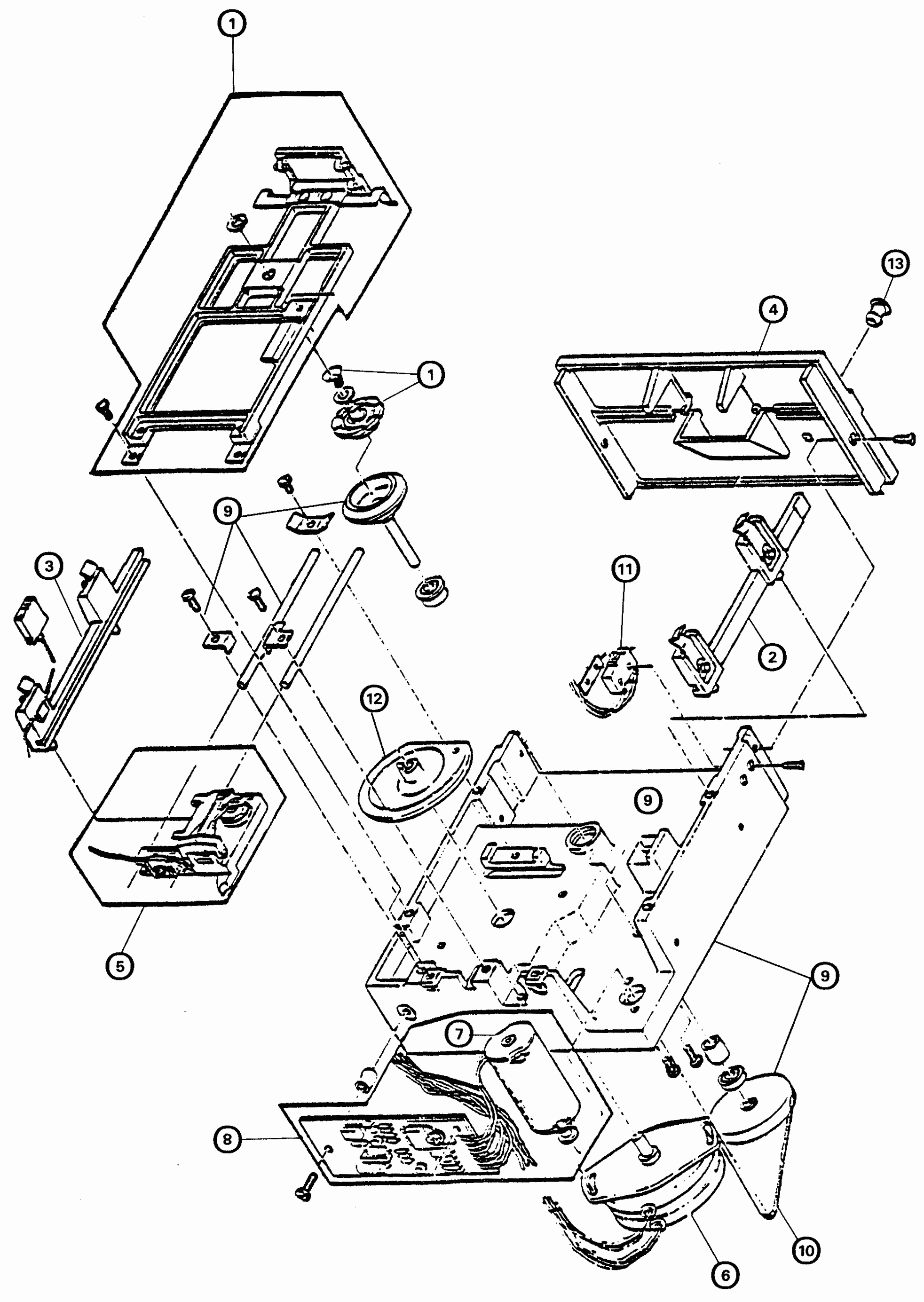

[Assembly drawing]
