2031 LP CIRCUIT THEORY

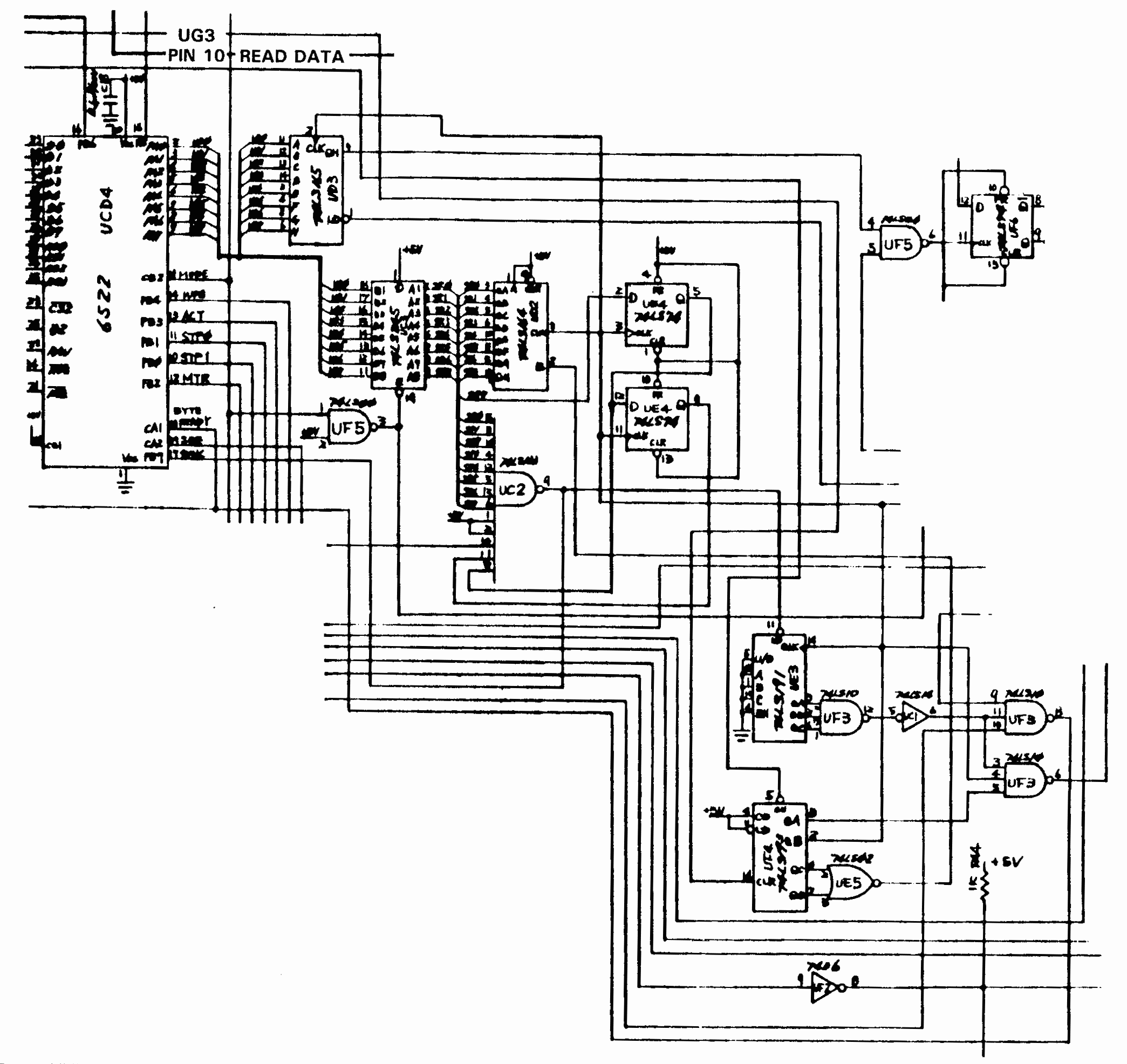

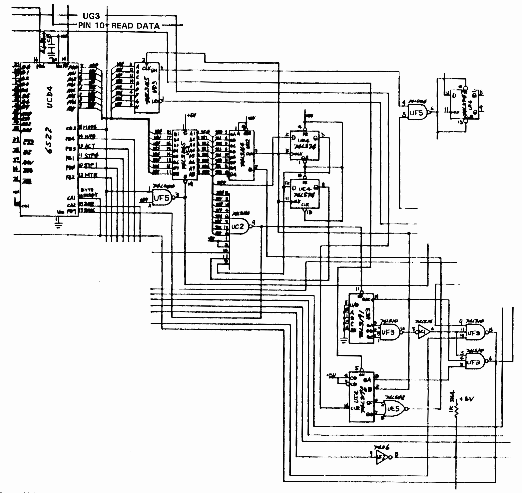

Read/Write Control Logic

UCD4 is a VIA (Versatile Interface Adapter). During a write operation, the microprocessor passes the data to be recorded to Port A of UCD4. The data is then loaded into LID3 which converts the parallel data into serial data. The output on pin 9 is input to 'NAND' gate UF5 pin 4. UF5 outputs the serial data on pin 6 at the clock rate determined by the input signal on pin 5. The output clocks the D flip flop UF6. The outputs of UF6, Q and Q, drive the write amplifiers.

During a read operation, data from the read amplifiers is applied to the CLR Input of counter UF4. The outputs, C and D, are shaped by the 'NOR' gate UE5. UE5 outputs the serial data on pin 1, then it is converted to parallel data by UD2. The output of UD2 is latched by UC3. The serial bits are counted by UE3, when 8 bits have been counted, UF3 pin 12 goes "low", UC1 pin 6 goes "high", and UF3 pin 8 goes "low" indicating byte is ready to be read by the processor. UC2 monitors the parallel output of UD2 when all 8 bits are " 1 ", the output pin 9 goes "low" indicating a sync bit has been read.
