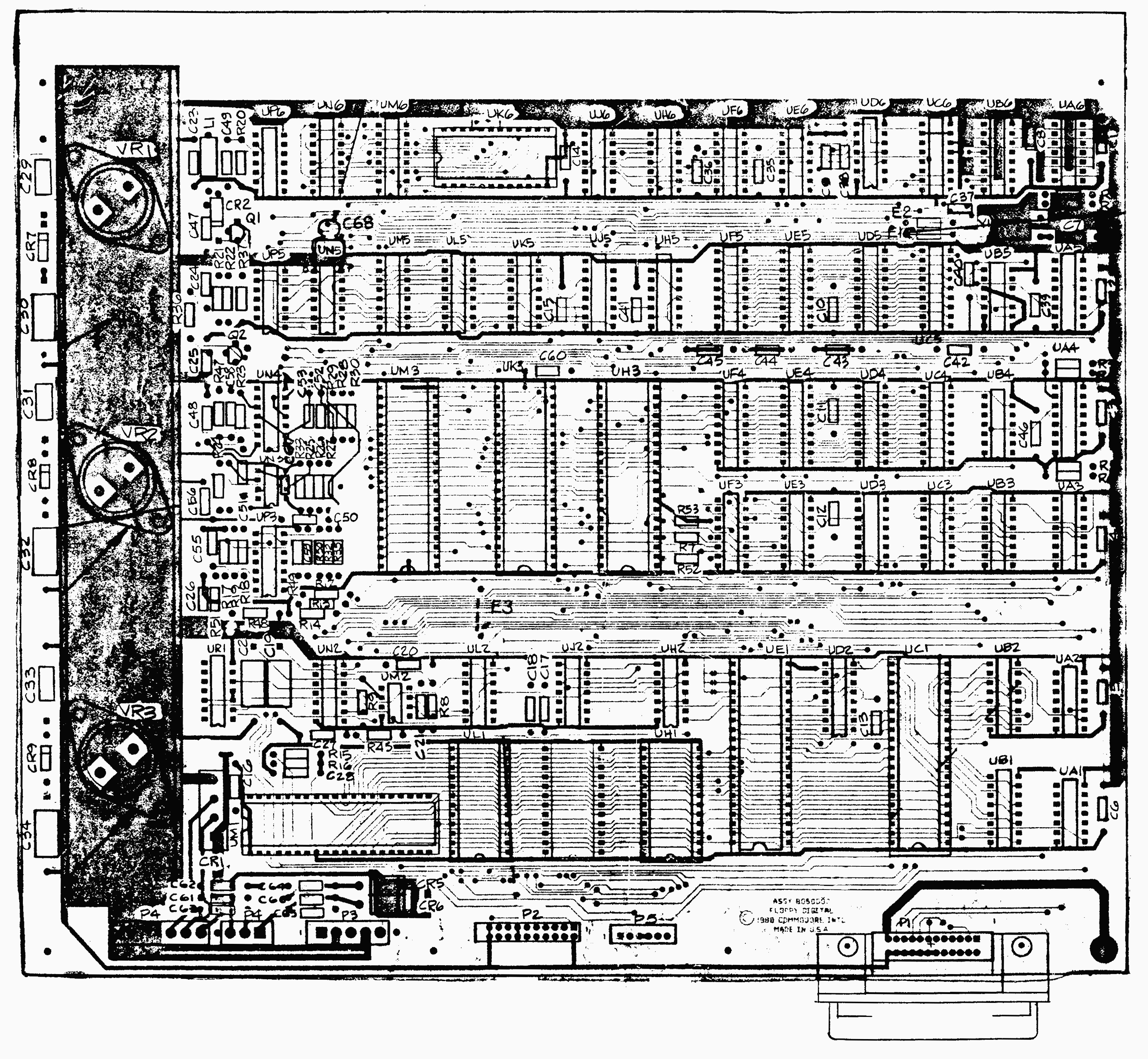

BOARD LAYOUT
|
![[Board layout]](large/page_23a.gif)
|
| |||||||||||||||||||||

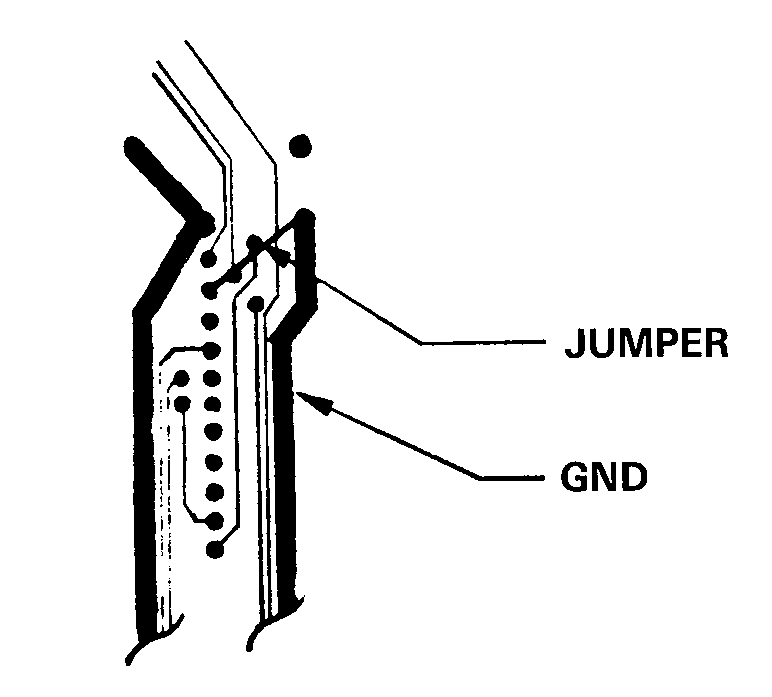

![[Jumper]](large/page_23b.gif) CIRCUIT SIDE VIEW OF UK3-18 | ||||||||||||||||||||||
| FOR 8250 PCB ASSY'S ONLY, ADD A JUMPER WIRE ON THE CIRCUIT SIDE OF THE BOARD, BETWEEN UK3 PIN 18 & GND AND AT LOCATION E3 ON THE COMPONENT SIDE OF THE BOARD. |
