SCHEMATIC 8050001
This page has been created by
Sami Rautiainen
.
Read the
small print
.
Last updated June 06, 1998.
![[Prev]](/images/blue_prev.gif){kind=small}
![[Next]](/images/blue_next.gif){kind=small}
![[Contents]](/images/blue_toc.gif){kind=small}
![[Commodore]](/images/blue_cbm.gif){kind=small}
![[New]](/images/blue_new.gif){kind=small}
![[Search]](/images/blue_search.gif){kind=small}
![[Home]](/images/blue_home.gif){kind=small}

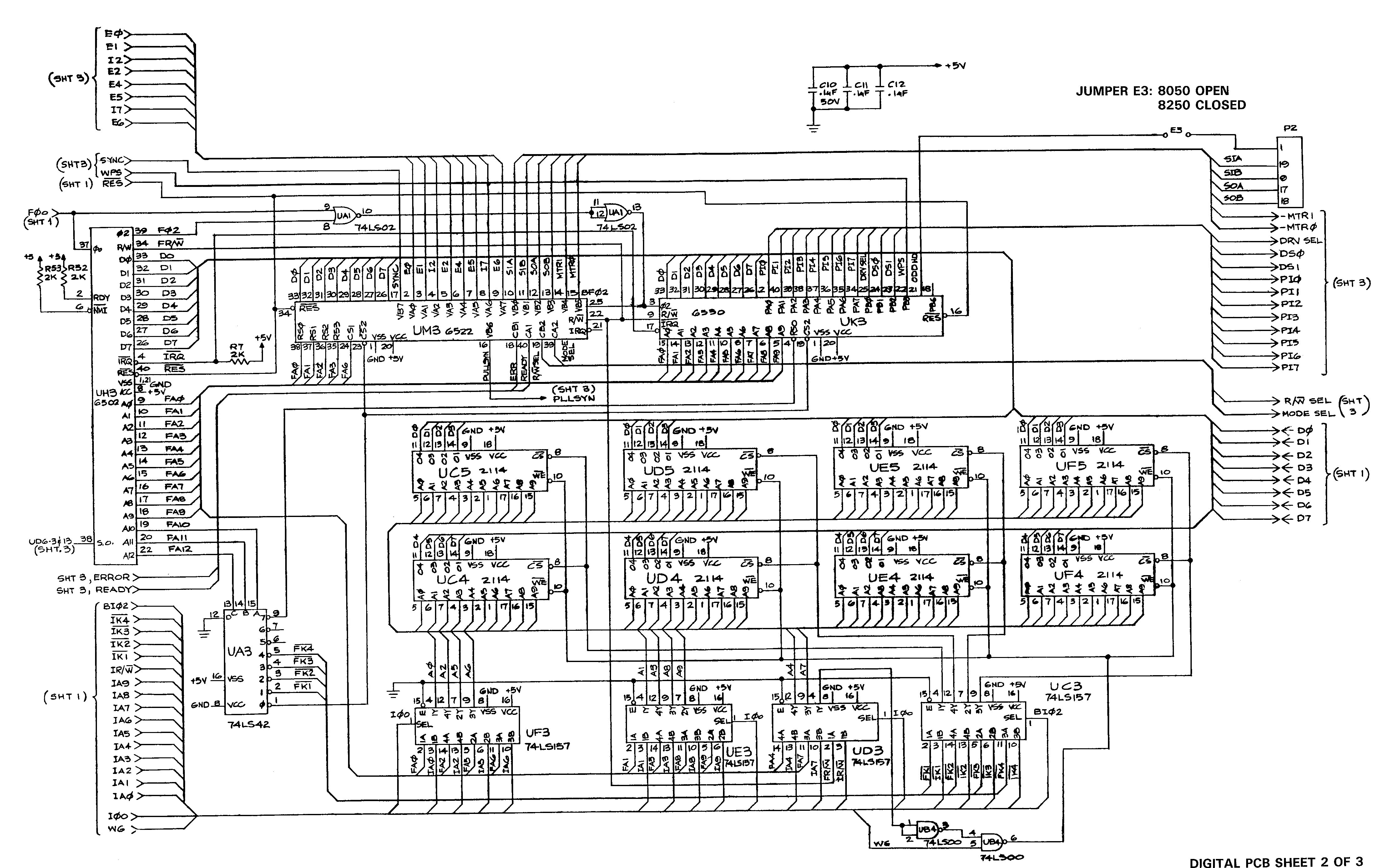

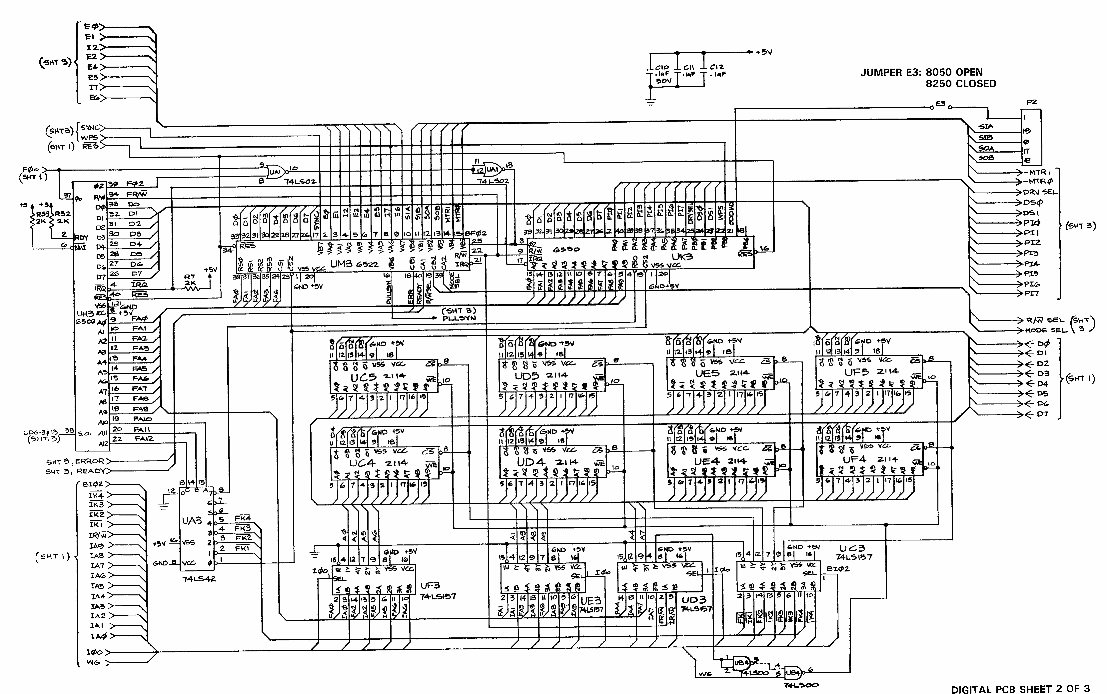

![[Digital PCB sheet 2 of 3]](large/page_26.gif)
