MICROPOLIS SAFARI DRIVE ASSEMBLIES
8050/8250

PARTS LIST

825003901 Microp. Safari Drive 8050
825003902 Microp. Safari Drive 8250

  1. 31424001 MSA DOOR ASSEMBLY
    1. Door w/Door Plate & Spring
  2. 31424101 MSA HUB ASSEMBLY
    1. Top Housing w/Hub
    2. Write Protect & Micro Switch Assy.
  3. 31424201 MSA FRONT BEZEL
    31424301 MSA 8050 R/W HEAD ASSY.
    1. R/W Head w/Harness
    2. Load Arm w/Pad
    31424401 MSA 8250 R/W HEAD ASSY.
    1. Up/Low R/W Head w/Harness
  4. 31424501 MSA STEPPER MOTOR ASSY.
    1. Stepper Motor w/Harness
  5. 31417001 MIC/MSA TACH MOTOR
    31424601 MSA HOUSING/SPINDLE ASSY.
    1. Housing Base
    2. Spindle/Tach Assy.
    31424701 MSA DRIVE BELT
    31424801 MSA HARDWARE
    1. Assorted Screws
    2. Assorted Springs
    31417401 UNIV. Replacement Load Pad
  6. 90382001 UNIV. LED Holder (2 pc.)
    32086901 Drive 0 Label
    32086902 Drive 1 Label

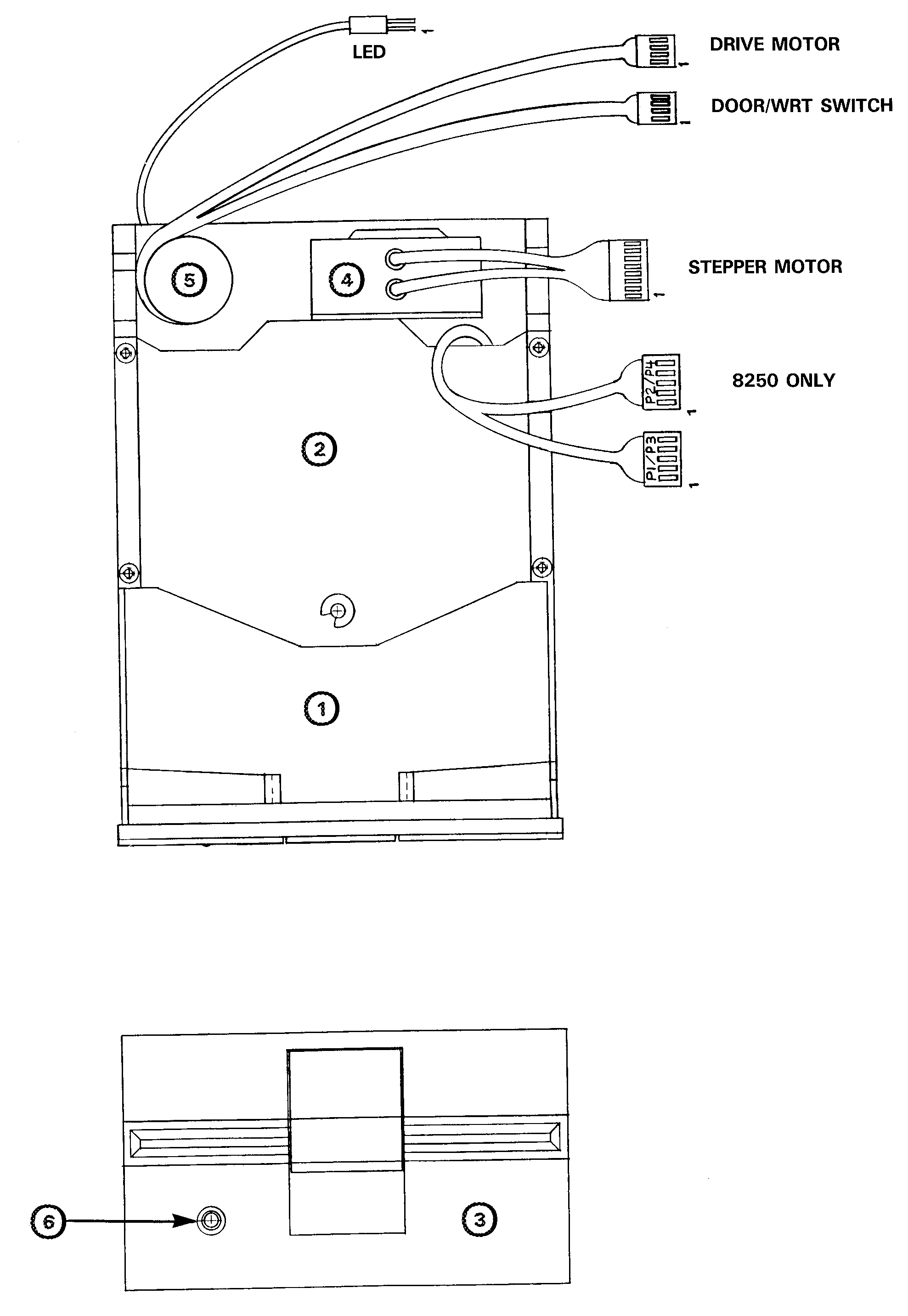

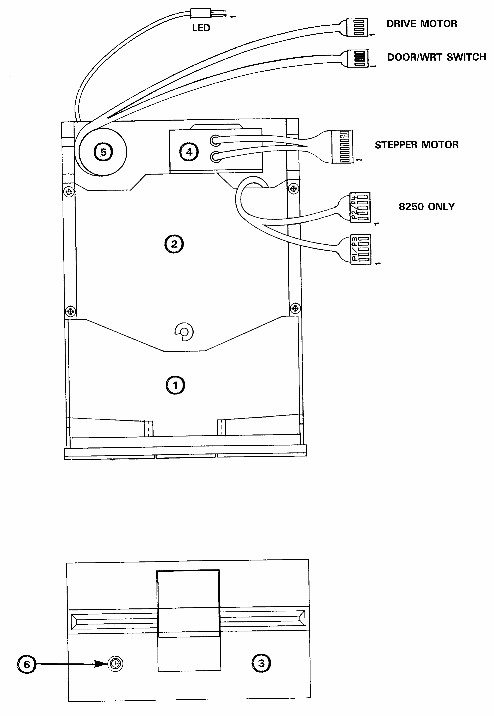

[Wiring diagram and layout]
NO LABEL (LED) 8 BLACK LED, CATHODE
7 WHITE LED, ANODE
NO LABEL (STEPPER MOTOR) 8 WHITE STEPPER PHASE D
7 BLACK STEPPER PAHSE B
6 KEY N/C
5 YELLOW STEPPER MOTOR +12
4 YELLOW STEPPER MOTOR +12
3 KEY N/C
2 WHITE STEPPER PHASE C
1 BLACK STEPPER PAHSE A
NO LABEL (DOOR/WPT Switch) 4 WHITE/RED WRITE PROTECT SWITCH
3 WHITE/BROWN WRITE PROTECT SWITCH
2 YELLOW DOOR SWITCH
1 GREEN DOOR SWITCH
NO LABEL (DRIVE MOTOR) 4 BLUE DRIVE MOTOR RETURN
3 GREEN TACHOMETER
2 YELLOW TACHOMETER
1 RED DRIVE MOTOR +12
P2/P4 -02 ONLY 5 BLACK READ/WRITE HEAD
4 BLACK R/W AND ERASE COMMON
3 BLACK ERASE HEAD
2 KEY N/C
1 BLACK READ/WRITE HEAD
P1/P3 5 BLACK READ/WRITE HEAD
4 BLACK R/W AND ERASE COMMON
3 BLACK ERASE HEAD
2 KEY N/C
1 BLACK READ/WRITE HEAD
CONNECTORPIN NO.WIRE COLORWIRE DESTINATION
