PARTS LIST
32551901
Alps Drive (Black)
32551902
Alps Drive (Brown)
31410001 ALP DOOR/HUB ASSEMBLY
Door Assy w/Spring
Hub/Collet Assy
Arm Support Assy
41310101 ALP LEFT DISK GUIDE ASSEMBLY
Diskette guide
LED Assy w/Harness
Write Protect Assy
31410201 ALP RIGHT DISK GUIDE
31410301 ALP FRONT BEZEL (Black)
31410302 ALP FRONT BEZEL (Brown)
31410401 ALP R/W HEAD ASSEMBLY
R/W Head
Load Arm w/Pad
Metal Band
31410501 ALP STEPPER MOTOR ASSEMBLY
Stepper Motor w/Harness
Stepper Motor Pulley
31410601 ALP D.C. MOTOR
31410701 ALP MOTOR CONTROL PCB ASSEMBLY
Motor Control PCB
Harness Array
31410801 ALP TENSION PULLEY ASSEMBLY
Pulley Wheel w/Spring
Plastic Housing
31410901 ALP HOUSING/SPINDLE ASSEMBLY
Housing Base
Spindle Assy
L/R Guide Shafts
31411001 ALP DRIVE BELT
31411101 ALP EJECT ASSEMBLY
Eject Plate
Eject Spring
31411201 ALP HARDWARE
Assorted Screws
Zero Stop Tab
3147401 UNV Replacement Load Pad

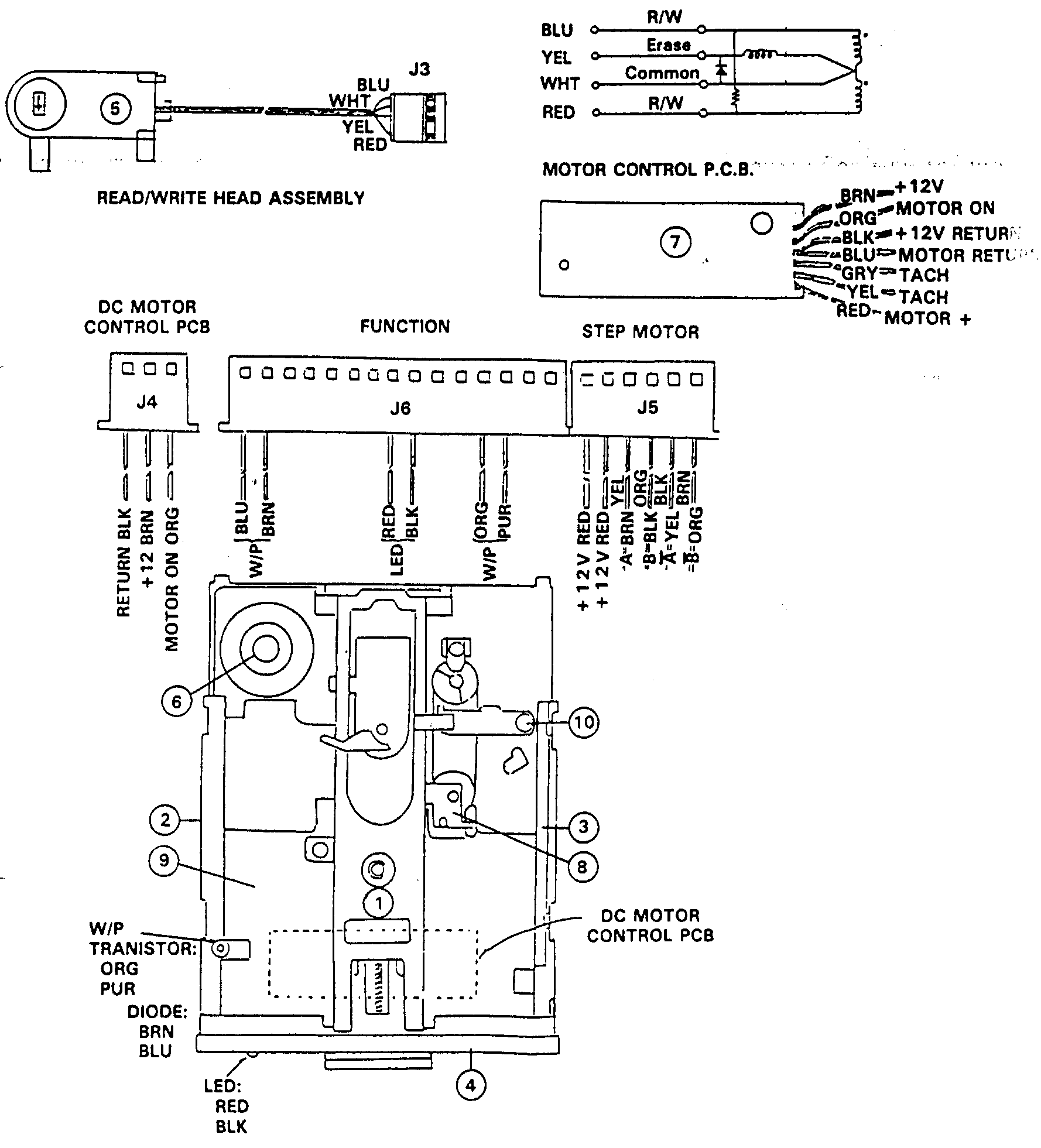

ALPS DRIVE ASSEMBLIES
1540/1541
