6502 MICROPROCESSOR

FEATURES OF 6502

  • 65K Addressable Bytes of Memory (A0-A15)
  • IRQ Interrupt
  • On-the-chip Clock
           TTL Level Single Phase Input
           RC Time Base Input
           Crystal Time Base Input
  • SYNC Signal
  • RDY Signal (can be used to halt or single cycle execution)
  • Two-Phase Output Clock for Timing of Support Chips
  • NMI Interrupt

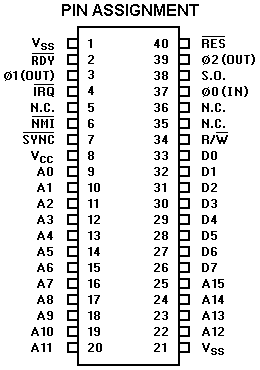

  • PIN ASSIGNMENT

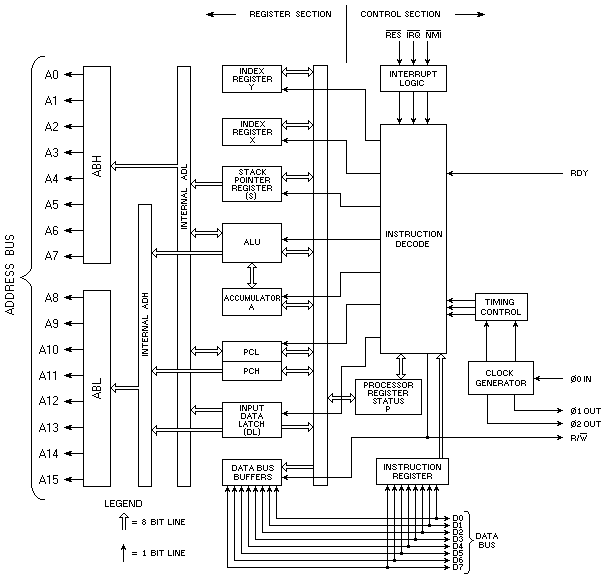

    BLOCK DIAGRAM
