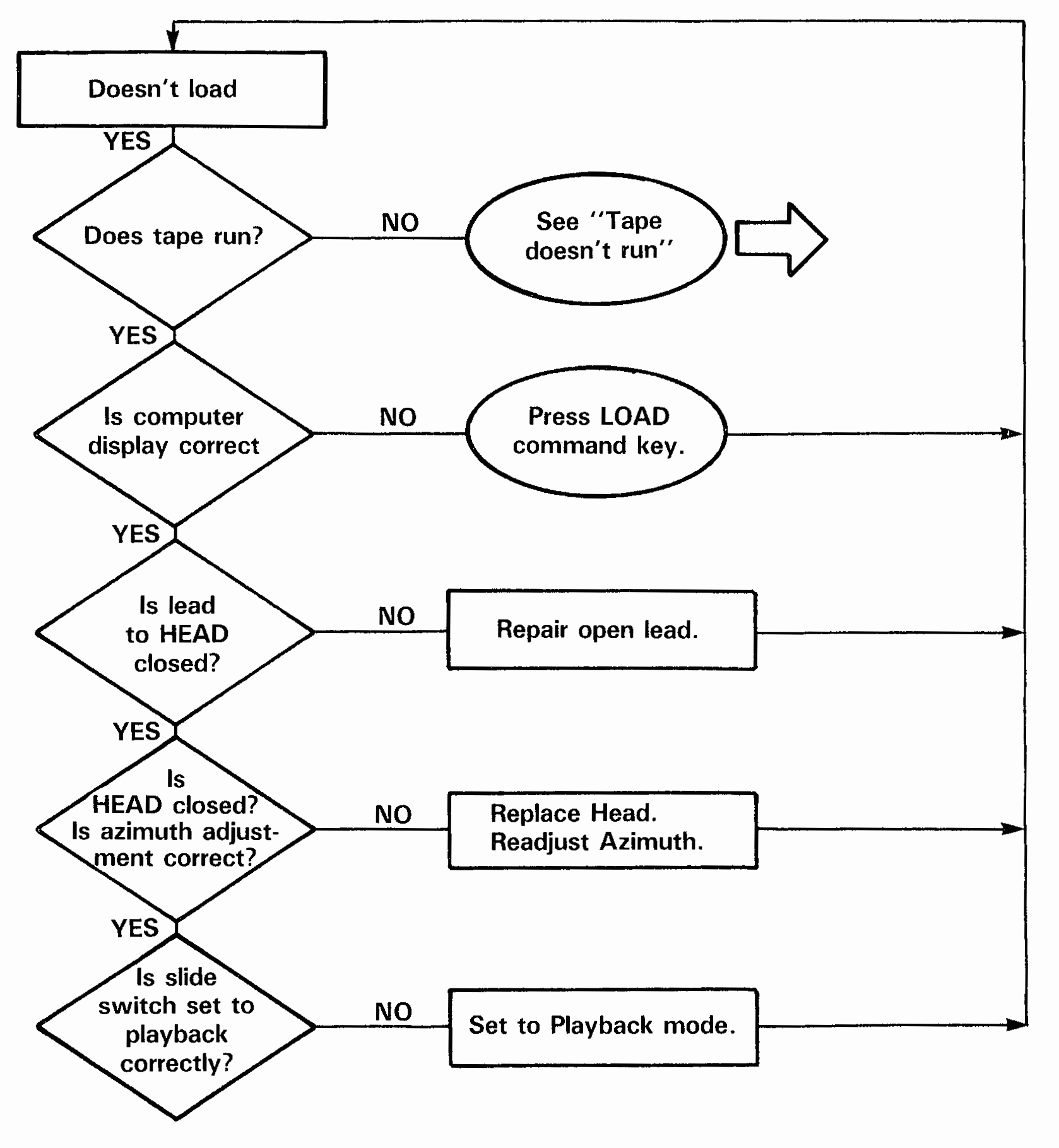

[Troubleshooting flowchart]

Due to the variety of Datasettes in the field, it is not possible to develop a flowchart to cover all of the component failures that are possible. From this point it is suggested that you:

  1. Check for proper head alignment
  2. Check for proper operation of the semi-conductor components on the PCB assembly
  3. Check component parts directly related to the proper operation of the I.C.'s and transistors in the circuit.
  4. Check I/O cable to computer and proper operation of the computer.
