PARTS LIST - PCB ASSEMBLY #320009

NOTE: DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS
IC1 LM 358 (T.I.) Sub:
NA 798 (Fairchild) Sub:
LM 258 (T.I.)
TRANSISTORS
Q1 NPN 2SC945 Sub:2N3904
Q2 NPN 2SC945 Sub:2N3904
Q3 NPN 2SD468 (H) Sub: 2SD471 (NEC)
Q4 NPN 2SB562 (H) Sub: 2SB564 (NEC)
Q5 NPN 2SC945 Sub: 2N3904
DIODES
CR1 -CR4 IN4148
RESISTORS - All values are in ohms-1/4 W
5% unless noted otherwise.
R1 220K
R2 15K
R3 270
R4 10K
R6 5.6 K 1/4w 2% (sub 1 %)
R7 10K 1/4w 2% (sub 1 %)
R8 47 1/4w 2% (sub 1 %)
R9 10K
R10 10K
R11 10K
R12 10K
R13 2M
R14 4.7 K
R15 1K
RESISTORS (Continued)
R16 100K
R18 100
R19 470
R20 10K
R21 3.3K
R22 100
R23 1K
R24 10K
R25 10K
R36 15K
CAPACITORS
C1 Electrolytic 47 µF 10V
C2 Electrolytic 10 µF 10V
C3 Film .1 µF 100V
C4 Ceramic .001 µF 50V
C5 Ceramic .1 µF 16V
C6 Ceramic .001 µF 50V
C7 Ceramic .01 µF 50V
C9 Ceramic 100 pF 50V
C10 Ceramic 100 pF 50V
C11 Ceramic .001 µF 50V
C17 Ceramic .1 µF 16V
MISC.
SWI Slide Switch SEA-621

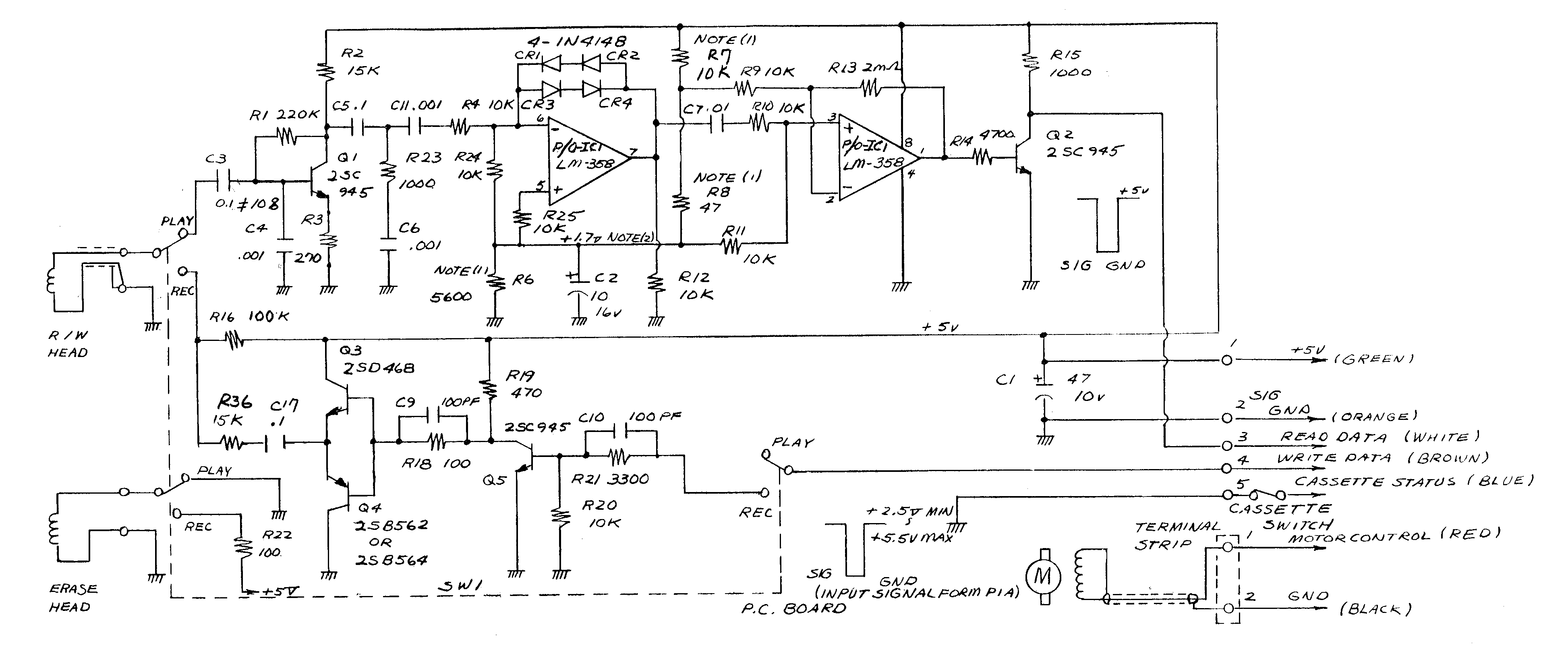

Schematic Circuit Diagram - PCB Assembly #320009

[Schematics]

NOTES:

  1. R6, R7, R8, ±2%, 1/4 WATT.
  2. THE BIAS SHOULD BE +1.7 ±0.005V AT 5V POWER SUPPLY
  3. UNLESS OTHERWISE NOTED, 1/4 WATT CARBON FILM 5% WITH VALUES IN OHMS
  4. UNLESS OTHERWISE NOTED, ALL CAPACITOR VALUES IN MICRO FARADS.
