PARTS LIST - PCB ASSEMBLY #320109

NOTE: DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS
IC1 LM 358 (T.I.) Sub:
NA 798 (Fairchild) Sub:
LM 258 (T.I.)
TRANSISTORS
Q1 NPN 2SC945 Sub:2N3904
Q2 NPN 2SC945 Sub:2N3904
Q3 NPN 2N4401
Q5 NPN 2SC945 Sub: 2N3904
DIODES
CR1 -CR4 IN4148
RESISTORS - All values are in ohms-1/4 W
5% unless noted otherwise.
R1 220K
R2 15K
R3 270
R6 5.6 K 1/4w 2% (sub 1 %)
R7 10K 1/4w 2% (sub 1 %)
R8 47 1/4w 2% (sub 1 %)
R9 10K
R10 10K
R11 10K
R13 2M
R15 470
R20 10K
RESISTORS (Continued)
R21 3.3K
R22 100
R23 1K
R26 750K
R27 750
R28 2200
R29 47K
R31 22K
R32 47
R35 75K
R36 15K
CAPACITORS
C1 Electrolytic 47 µF 10V
C3 Film .1 µF 16V
C4 Ceramic .001 µF 50V
C5 Ceramic .1 µF 16V
C11 Ceramic .001 µF 50V
C15Electrolytic 22 µF 10V
C16 Ceramic .1 µF 16V
C17 Ceramic .1 µF 16V
MISC.
SWI Slide Switch SEA-621

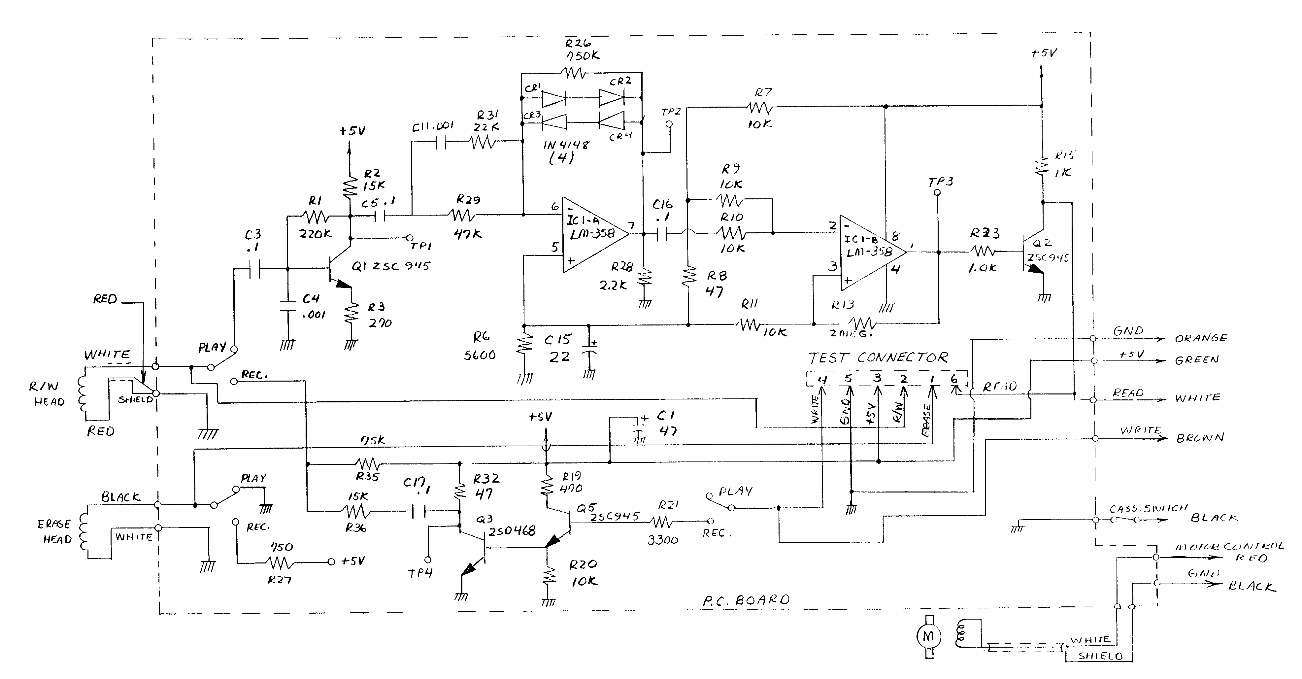

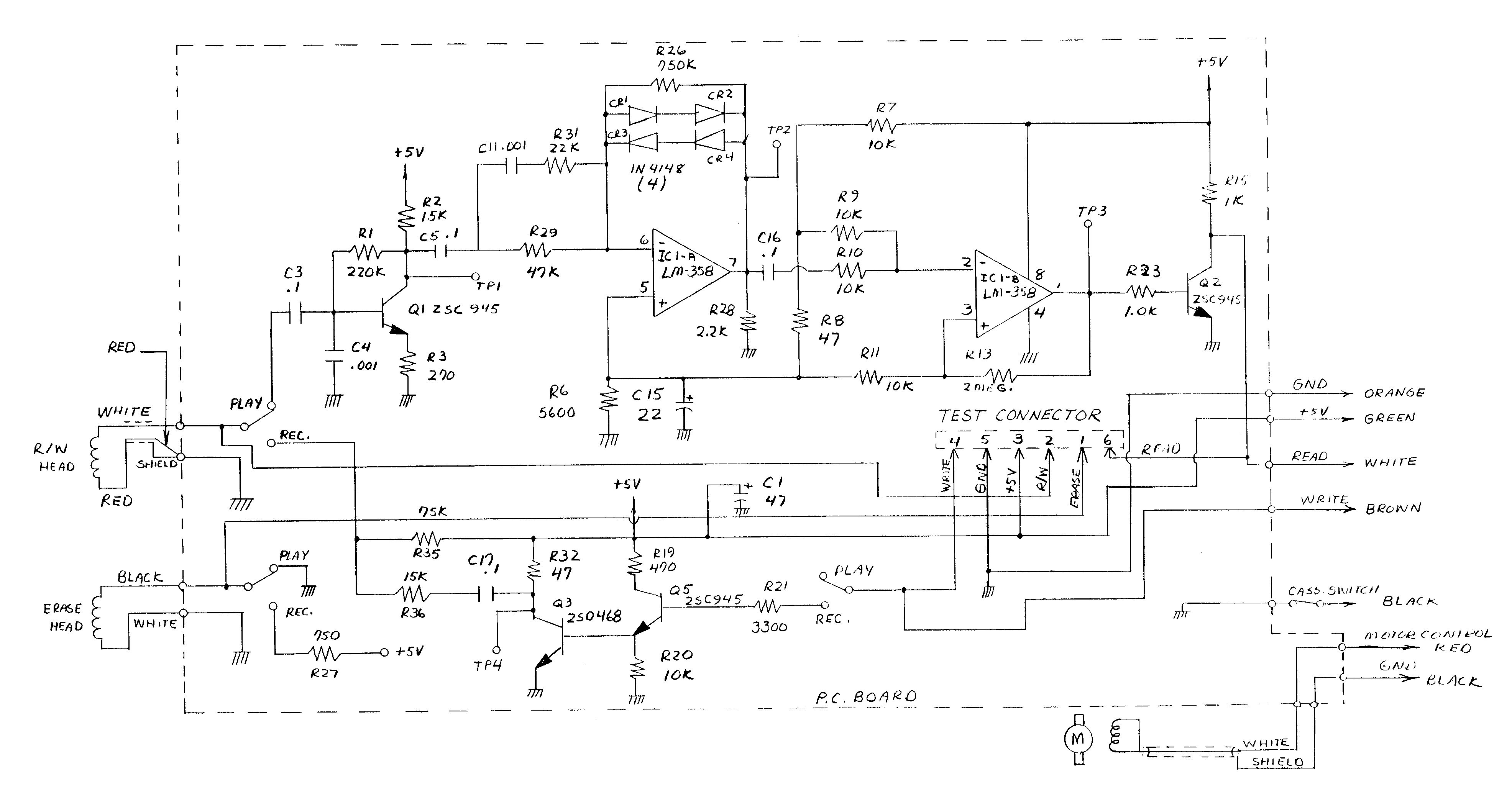

Schematic Circuit Diagram - PCB Assembly #320190

[Schematics]

NOTES:

  1. R6, R7, R8, ±2%, 1/4 WATT.
  2. THE BIAS SHOULD BE +1.7 ±0.005V AT 5V POWER SUPPLY
  3. UNLESS OTHERWISE NOTED, 1/4 WATT CARBON FILM 5% WITH VALUES IN OHMS
  4. UNLESS OTHERWISE NOTED, ALL CAPACITOR VALUES IN MICRO FARADS.
