PARTS LIST - PCB ASSEMBLY #320275

NOTE: DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS
IC1 LM 358 (T.I.) Sub:
NA798 (Fairchild) Sub:
LM258 (T.I.)
IC2 LM 358 (T.I.) Sub:
NA798 (Fairchild) Sub:
LM 258 (T.I.)
IC3 7414 Hex Inverter
RESISTORS - All values are in ohms-1/4 W
5% unless noted otherwise.
R1 10K
R2 10K
R3 330K
R4 330K
R5 2.7K
R6 7.5K
R7 47K
R8 47K
R9 2.7K
R10330K
R112.9K
R12 47K
R13 56K
R14 2.7K
R15 10K
RESISTORS (Continued)
R16 10K
R17 2.2M
R18 3.3K
R19 2K
R20 1K
R21 470
R22 470
R23 10K
R24 220
CAPACITORS
C1 Ceramic .1 µF 16V
C2 Ceramic 180 pF 250V (+ -) 10%
C3 Ceramic .002 µF 250V (+ -) 10%
C4 Ceramic .150 pF 250V (+ -) 10%
C5 Ceramic .1 µF 16V
C6 Electrolytic 47 µF 10V
C7 Electrolytic 47 µF 10V
C8 Monolythic .47 µF 50V
MISC.
SWI Slide Switch SEA-621

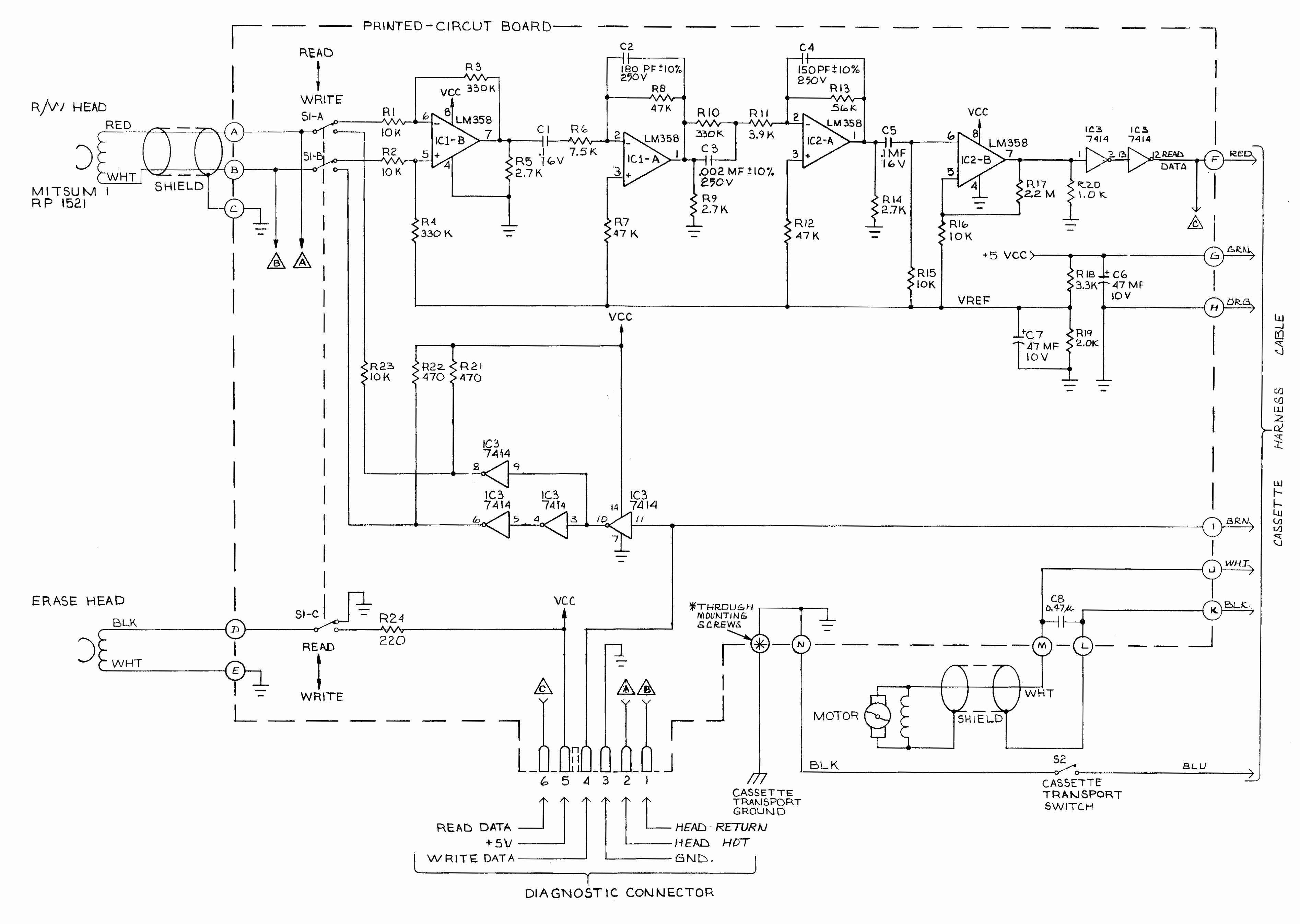

Schematic Circuit Diagram - PCB Assembly #320275

[Schematics]

  1. ALL RESISTANCE VALUES ARE IN OHMS, 1/4W, ±5%
NOTES: UNLESS OTHERWISE SPECIFIED -
