PARTS LIST - PCB ASSEMBLY #CMR-001-0

NOTE: DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS
IC1 IC LA6324 or NJM-2902N
IC2 IC M53214P or DM7414N
DIODES
D1 LED RED 3ø
LED Spacer
RESISTORS - All values are in ohms-1/4 W
5% unless noted otherwise.
R1 470 ohm
R2 470 ohm
R3 470 ohm
R4 220 ohm
R6 2.7k ohm
R6 2.7k ohm
R7 2.2M ohm
R8 1k ohm
R9 10k ohm
R10 10k ohm
R11 47k ohm
R12 3.9k ohm
R13 56k ohm
R14 10k ohm
R15 330k ohm
R16 330k ohm
R17 10k ohm
R18 10k ohm
RESISTORS (Continued)
R19 7.5k ohm
R20 47k ohm
R21 47k ohm
R22 330k ohm
R23 2k ohm
R24 2.7k ohm
R25 3.3k ohm
CAPACITORS
C1 Aluminum 0.47µ/25V
C2 Electrolytic 47µ/10V
C3 Mylar 47µ/10V
C4 Ceramic .150p
C5 Mylar 0.1µ
C6 Ceramic 180p
C7 Ceramic 0.0022µ
C8 Electrolytic 47µ/10V
MISC.
SWI Slide Switch SEA-621
F1 Ferrite Bead
F2-F6 Ferrite Bead QIBRHW3.5x4.5x0.8
CN1 7 Pin Connector

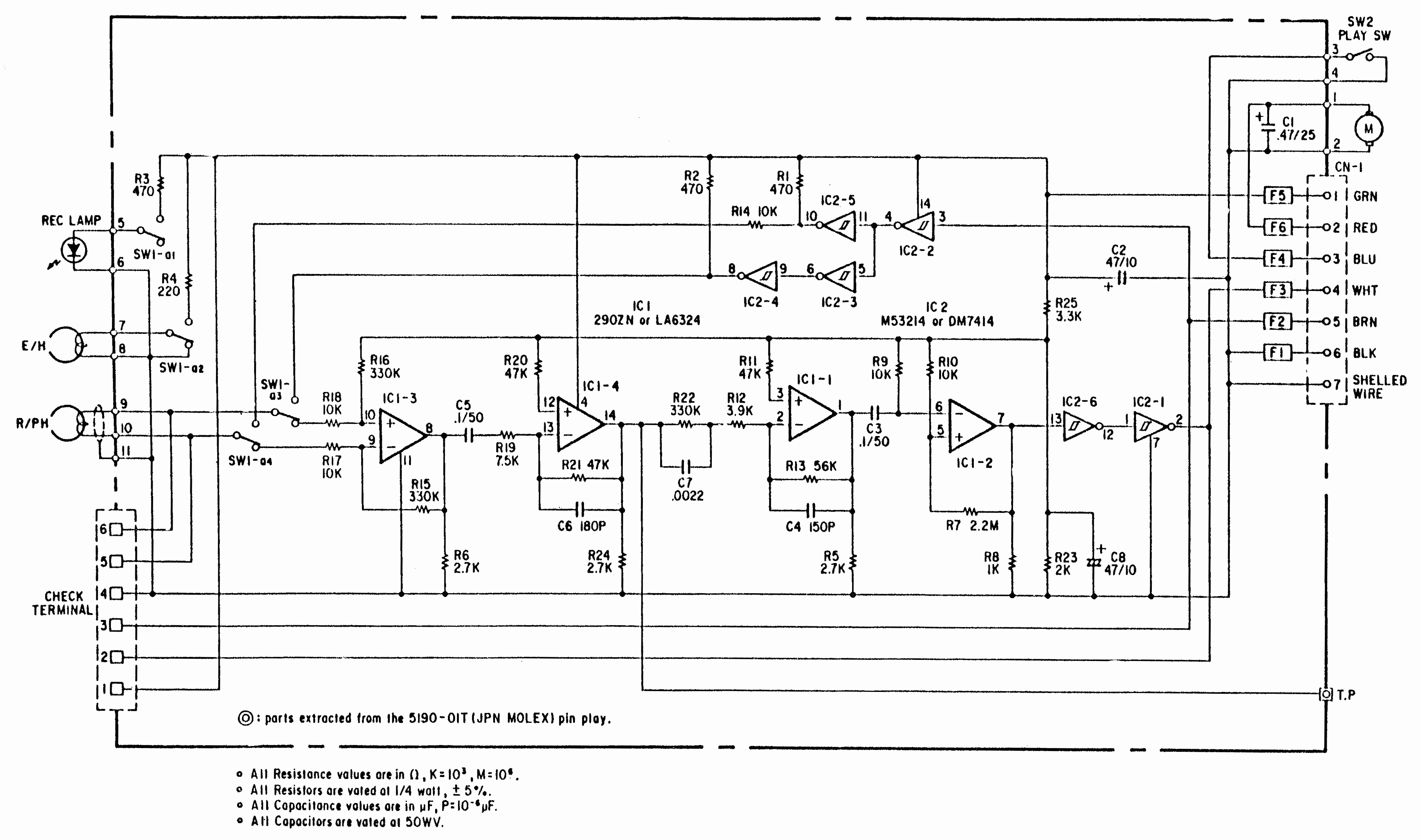

Schematic Circuit Diagram - PCB Assembly #CMR-001-0

[Schematics]
