PARTS LIST - PCB ASSEMBLY #NP-090

NOTE: DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS
IC1 AN-6562
IC2 AN-6562
IC3 74LS14
RESISTORS - All values are in ohms-1/4 W
5% unless noted otherwise.
R1 10K
R2 10K
R3 330K
R4 330K
R6 2.7K
R7 6.8K
R8 47K
R9 47K
R10330K
R113.9K
R1247K
R1356K
R142.7K
R1510K
RESISTORS (Continued)
R16 10K
R18 2.2M
R18 3.3K
R19 2,2K
R20 1K
R21 470
R22 470
R23 10K
R24 220
R25 560
CAPACITORS
C1 Mylar 0.1 µF
C2 Ceramic 180 pF
C3 Ceramic 0.002 µF
C4 Ceramic 150 pF
C5 Mylar .1 µF
C6 Electrolytic 47 µF 10V
C7 Electrolytic 47 µF 10V
C8 Tantalum 0.47 µF 35V FCC Version Only

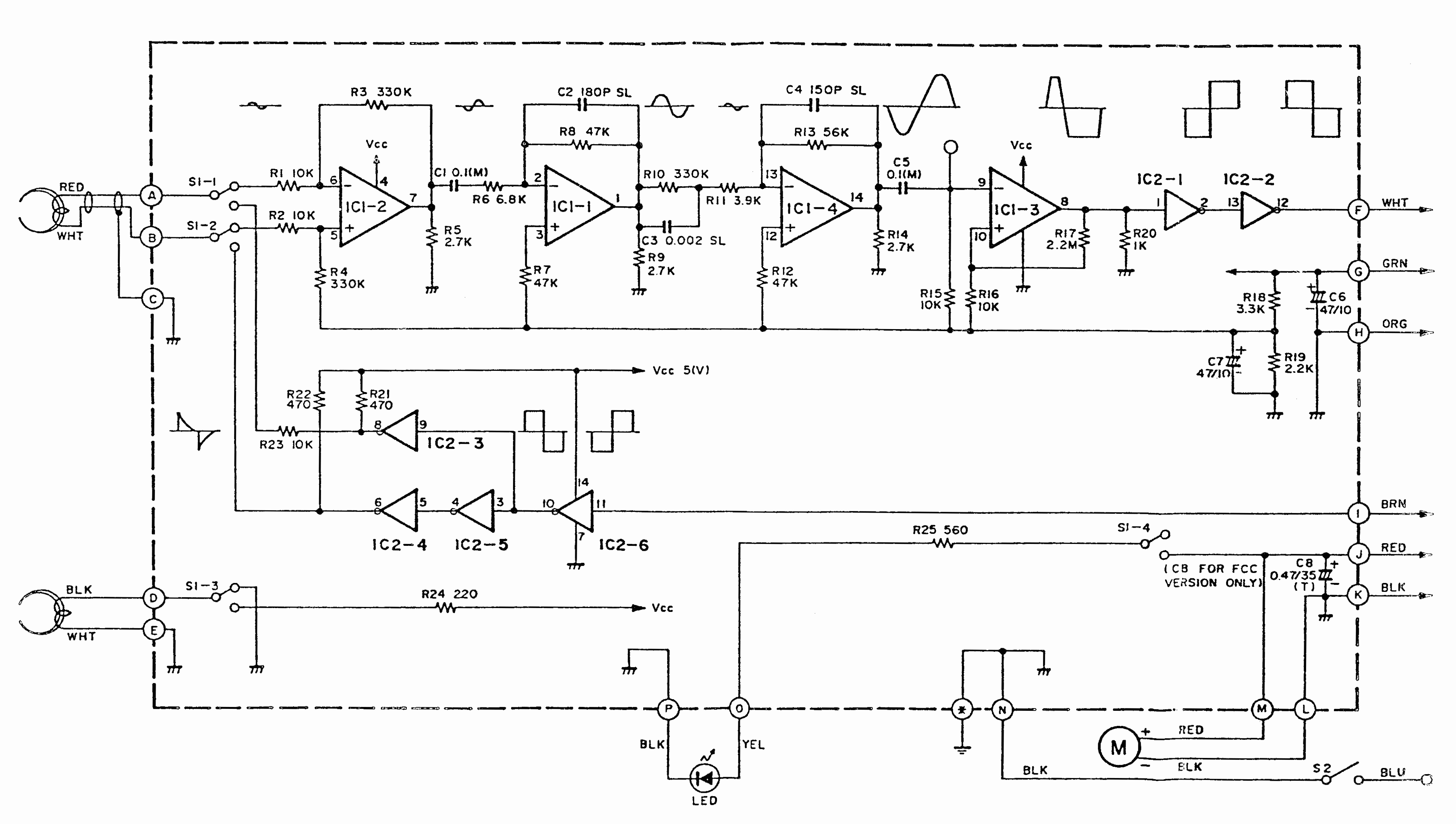

Schematic Circuit Diagram - PCB Assembly #NP-090

[Schematics]
