PARTS LIST - PCB ASSEMBLY #017-5001-01

NOTE: DATASETTE PARTS ARE NOT AVAILABLE FROM COMMODORE - parts list is for cross reference only.

INTERGRATED CIRCUITS
IC1 IC LA6324
IC2 IC DM7414
TRANSISTORS
Q1 2SC1815Y or GR
DIODES
D1 LED RED 3ø
RESISTORS - All values are in ohms-1/4 W
5% unless noted otherwise.
R1 470 ohm
R2 470 ohm
R3 2.2M ohm
CAPACITORS
C1 Aluminum 0.47µ/25V
C2 Electrolytic 47µ/10V
C3 Mylar .1µ
C4 Ceramic 150p
C5 Mylar .1µ
C6 Ceramic 180p
C7 Ceramic 0.0022µ
C8 Electrolytic 47µ/10V
MISC.
F1-F6 Ferrite Bead Q1BRHW3.5x4.5x0.8
SWI Slide Switch
CN1 7 Pin Connector

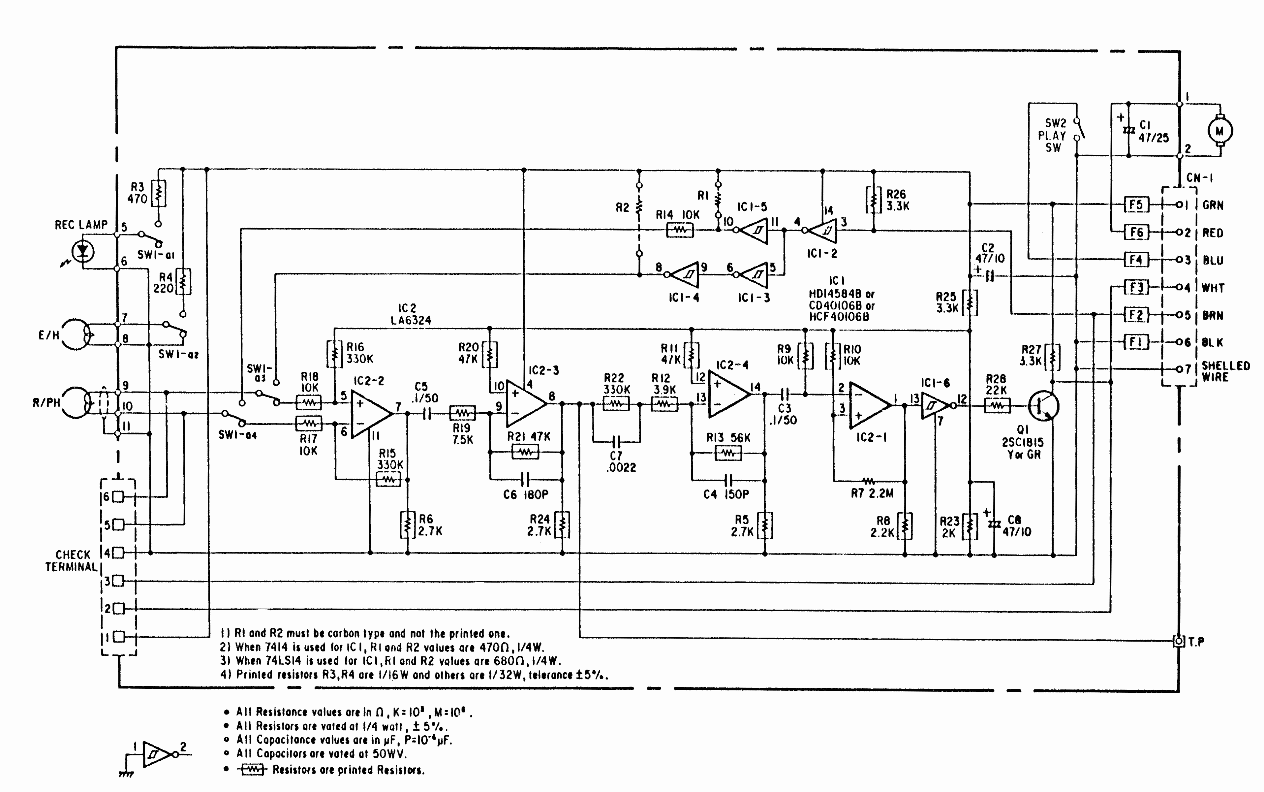

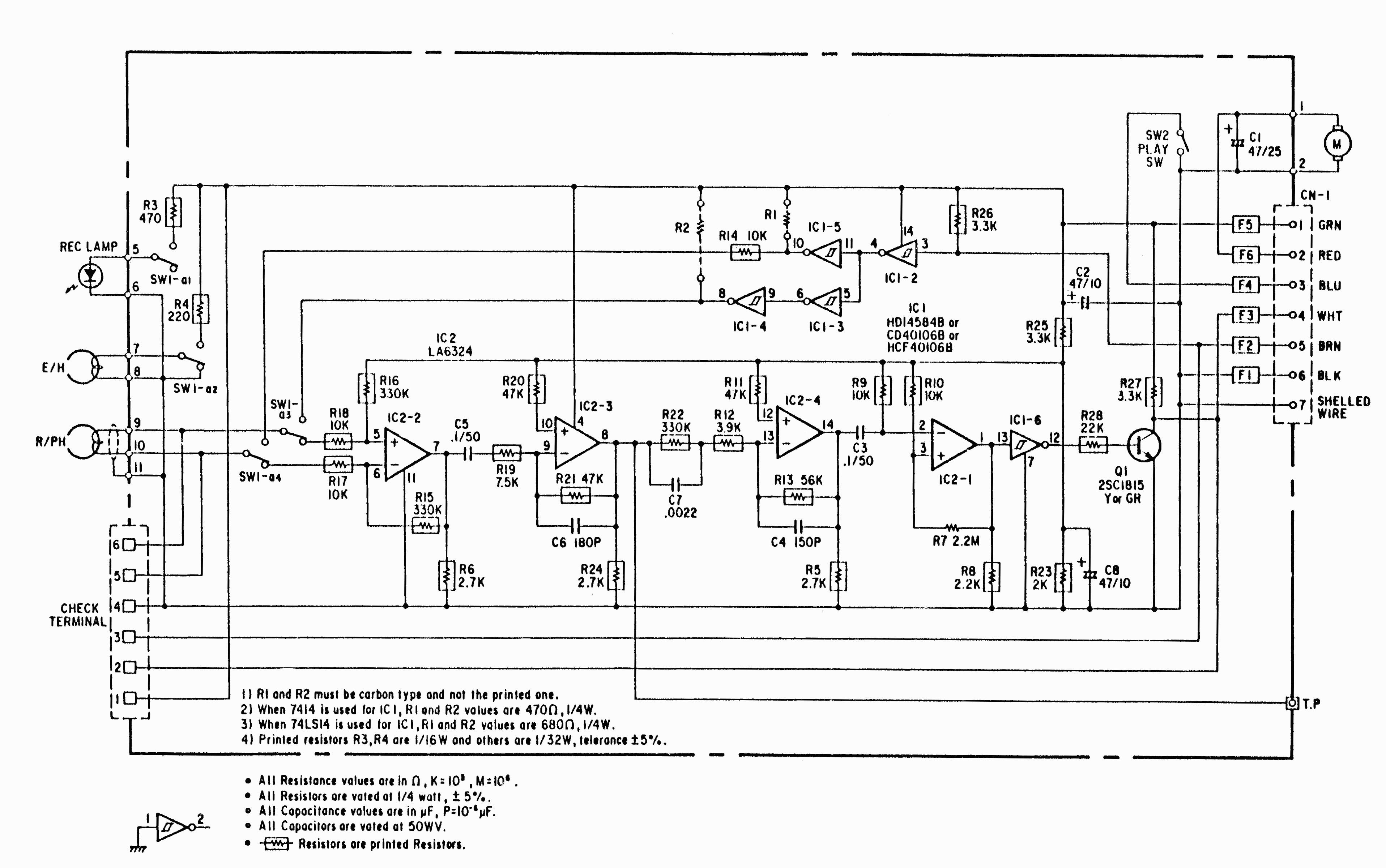

Schematic Circuit Diagram - PCB Assembly #017-5001-01

[Schematics]
