This signal is used for timing the data sent on the serial bus. (See Figure 6-4).
Data on the serial bus is transmitted one bit at a time on this line. (See Figure 6-4).
The expansion connector is a 44-pin (22/22) female edge connector on the back of the Commodore 64. With the Commodore 64 facing you, the expansion connector is on the far right of the back of the computer. To use the connector, a 44-pin (22/22) male edge connector is required.

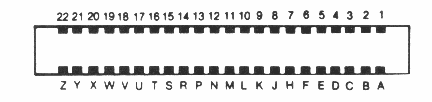

This port is used for expansions of the Commodore 64 system which require access to the address bus or the data bus of the computer. Caution is necessary when using the expansion bus, because it's possible to damage the Commodore 64 by a malfunction of your equipment. The expansion bus is arranged as follows:
The signals available on the connector are as follows:
NAME | PIN | DESCRIPTION |
---|---|---|
GND | 1 | System ground |
+5VDC | 2 | (Total USER PORT and CARTRIDGE devices can draw no more than 450 mA.) |
+5VDC | 3 | |
/IRQ | 4 | Interrupt Request line to 6502 (active low) |
R/W | 5 | Read/Write (write active low) |
DOT CLOCK | 6 | 8.18 MHz video dot clock |
/I/O1 | 7 | I/O block 1 @ $ DE00-$DEFF (active low) unbuffered I/O |
/GAME | 8 | active low ls ttl input |
/EXROM | 9 | active low ls ttl input |
/I/O2 | 10 | I/O block 2 @ $DF00-$DFFF (active low) buff'ed ls ttl output |
/ROML | 11 | 8K decoded RAM/ROM block @ $8000 (active low) buffered ls ttl output |
BA | 12 | Bus available signal from the VIC-II chip unbuffered 1 Is load max. |
/DMA | 13 | Direct memory access request line (active low input) ls ttl input |
D7 | 14 | Data bus bit 7 - unbuffered, 1 ls ttl load max |
D6 | 15 | Data bus bit 6 - unbuffered, 1 ls ttl load max |
D5 | 16 | Data bus bit 5 - unbuffered, 1 ls ttl load max |
D4 | 17 | Data bus bit 4 - unbuffered, 1 ls ttl load max |
D3 | 18 | Data bus bit 3 - unbuffered, 1 ls ttl load max |
D2 | 19 | Data bus bit 2 - unbuffered, 1 ls ttl load max |
D1 | 20 | Data bus bit 1 - unbuffered, 1 ls ttl load max |
D0 | 21 | Data bus bit 0 - unbuffered, 1 ls ttl load max |
GND | 22 | System ground |
GND | A | |
/ROMH | B | 8K decoded RAM/ROM block @ $E000 buffered |
/RESET | C | 6502 RESET pin(active low) buff'ed ttl out/unbuff'ed in |
/NMI | D | 6502 Non Maskable Interrupt (active low) buff'ed ttl out, unbuff'ed in |
02 | E | Phase 2 system clock |
A15 | F | Address bus bit 15 - unbuffered, 1 ls ttl load max |
A14 | H | Address bus bit 14 - unbuffered, 1 ls ttl load max |
A13 | J | Address bus bit 13 - unbuffered, 1 ls ttl load max |
A12 | K | Address bus bit 12 - unbuffered, 1 ls ttl load max |
A11 | L | Address bus bit 11 - unbuffered, 1 ls ttl load max |
A10 | M | Address bus bit 10 - unbuffered, 1 ls ttl load max |
A9 | N | Address bus bit 9 - unbuffered, 1 ls ttl load max |
A8 | P | Address bus bit 8 - unbuffered, 1 ls ttl load max |
A7 | R | Address bus bit 7 - unbuffered, 1 ls ttl load max |
A6 | S | Address bus bit 6 - unbuffered, 1 ls ttl load max |
A5 | T | Address bus bit 5 - unbuffered, 1 ls ttl load max |
A4 | U | Address bus bit 4 - unbuffered, 1 ls ttl load max |
A3 | V | Address bus bit 3 - unbuffered, 1 ls ttl load max |
A2 | W | Address bus bit 2 - unbuffered, 1 ls ttl load max |
A1 | X | Address bus bit 1 - unbuffered, 1 ls ttl load max |
A0 | Y | Address bus bit 0 - unbuffered, 1 ls ttl load max |
GND | Z | System ground |
