System Specification for C65Fred BowenMarch 1, 1991

1.3 System Components

Microcontroller: 4510 (65CE02, 2x6526, 6511 UART, Mapper, Fast serial)
Memory: 4464 DRAM (128K bytes)
271001 ROM (128K bytes)
Video controller: 4567 (extended VIC, DAT, PLA)
Audio controllers: 6581 (SID)
Memory control: 41xx-FO18 (DMA)
Disk controller: 41xx-FO11 (FDC, supports 2 DSDD drives, MFM, RAM buffer)

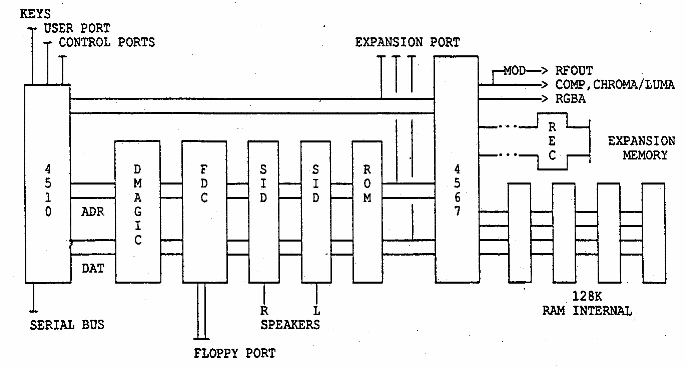

[Block diagram]
