RF Modulator Layout and Schematic #251844

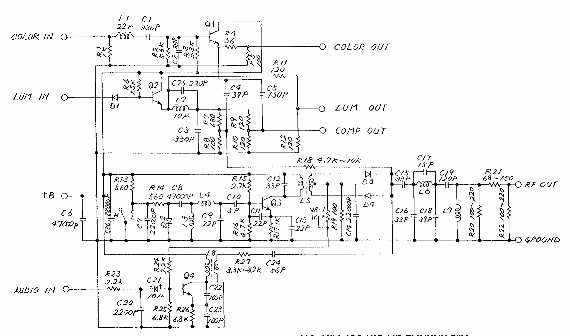

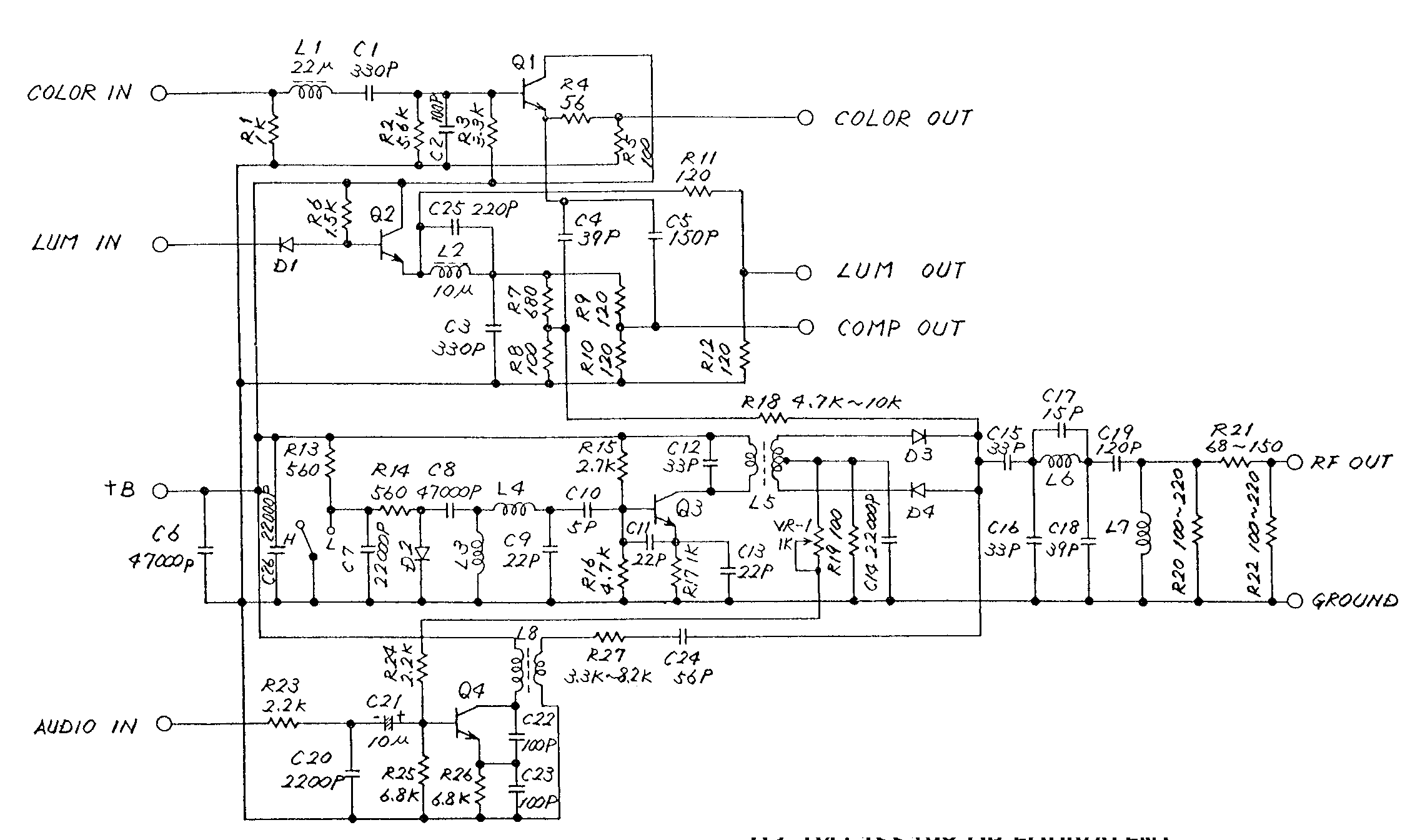

[RF Modulator Schematic #251844]
COMPONENT PARTS VALUE: R = Ohm, C = F, L = H
Q3, Q4: 2SC460 OR EQUIVALENT.
Q1, Q2: 2SC1684 OR EQUIVALENT.
D3, D4: 1SS198 OR EQUIVALENT.
D2 : 1SS110 OR EQUIVALENT.
D1 : 1SS119 OR EQUIVALENT.
[RF Modulator - Top view]
TOP VIEW
[RF Modulator - Detail (Ch.Sw)]
NO.TERMINALS
1 N.C.
2 AUDIO SIG. INPUT
3 +B (+5V)
4 SYNC + LUM. SIG. INPUT
5 COLOR SIG. INPUT
6 COLOR SIG. OUTPUT
7 COMPO. SIG. OUTPUT
8 SYNC + LUM. SIG. OUTPUT
9 RF OUTPUT
10CHANNEL SELECT SW.
[RF Modulator - Top view]
REAR VIEW
