QUICK REFERENCE
| TITLE | PAGE |
|---|
| 2016 | 17 |
| 4066 | 47 |
| 4416 | 19 |
| 556 | 47 |
| 74XXX | 48 |
| 8563 | 38 |
| 8564 | 35 |
| 8701 | 30 |
| BUS ARCHITECTURE | 4 |
| CLOCK | 30 |
| LINE DEFINITIONS | 46 |
| MEMORY ARCHITECTURE | 11 |
| MODULATOR | 68 |
| RAM | 17 |
| ROM | 15 |
| VIC | | |
| Text | 33 |
| Pin Configuration | 35 |
| VIDEO CONTROLLER | |
| Text | 36 |
| Pin Configuration | 38 |
| VIDEO INTERFACE | 33 |
|

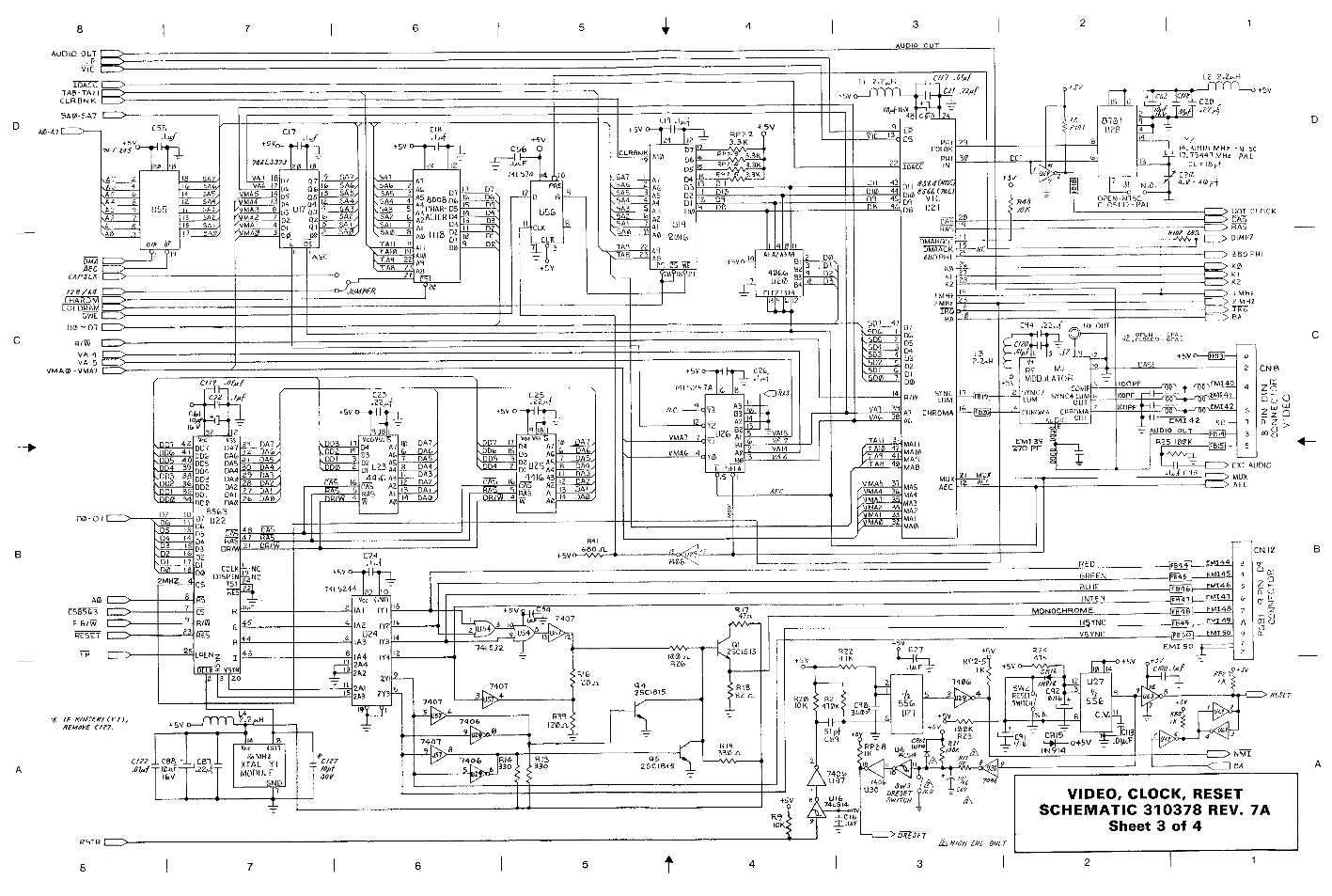

![[Video, clock, reset Schematic 310378 Rev. 7A Sheet 3 of 4]](small/page_66.gif)
|
![[Prev]](/images/blue_prev.gif){kind=small}
![[Next]](/images/blue_next.gif){kind=small}
![[Contents]](/images/blue_toc.gif){kind=small}
![[Commodore]](/images/blue_cbm.gif){kind=small}
![[New]](/images/blue_new.gif){kind=small}
![[Search]](/images/blue_search.gif){kind=small}
![[Home]](/images/blue_home.gif){kind=small}

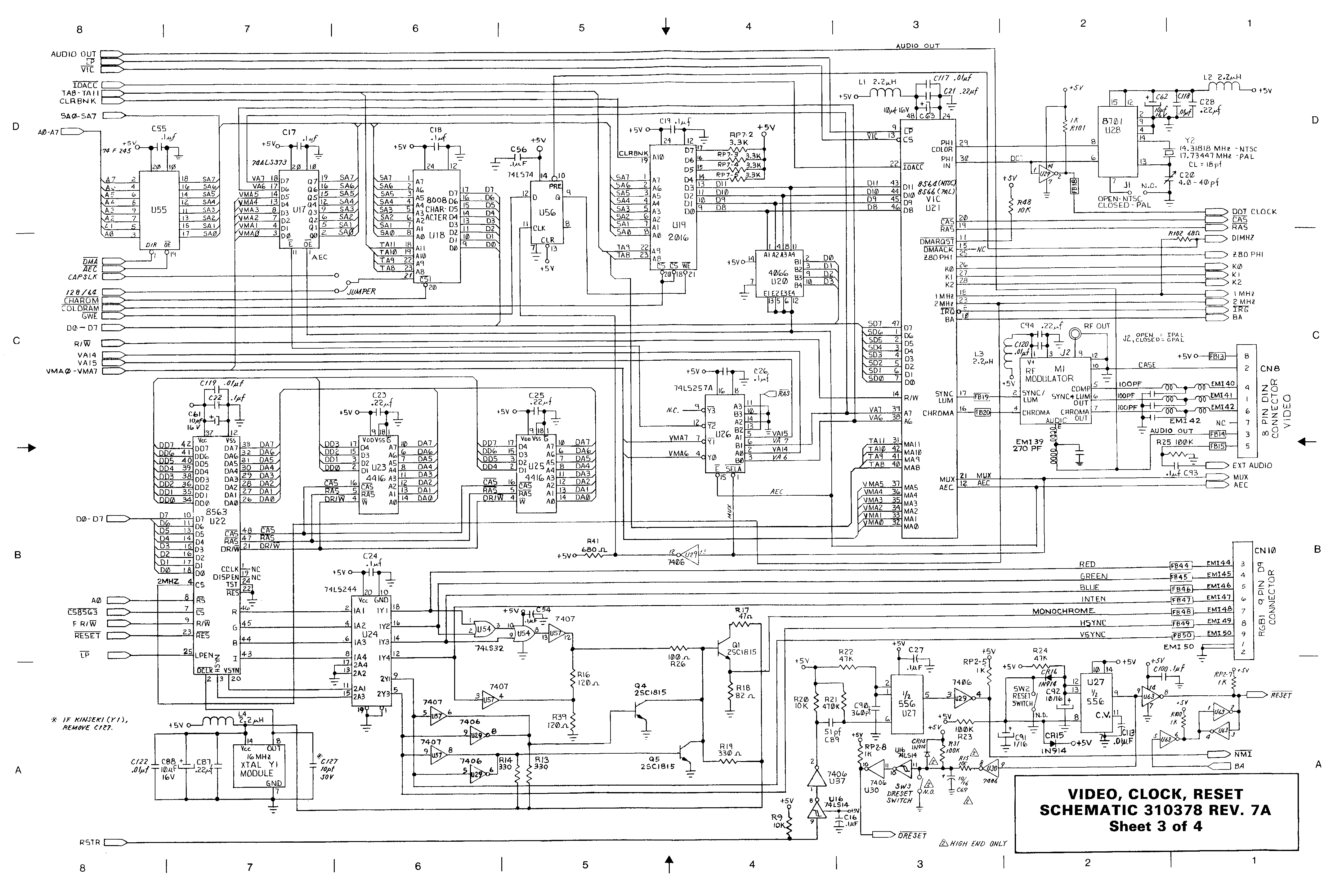

![[Video, clock, reset Schematic 310378 Rev. 7A Sheet 3 of 4]](large/page_66.gif)
