Ancient file library

Directory of /pub/Commodore/docs/techtopics/issue_20/
..20-Jan-2006 22:22Parent directory

Image001.png20-May-2006 19:458599466

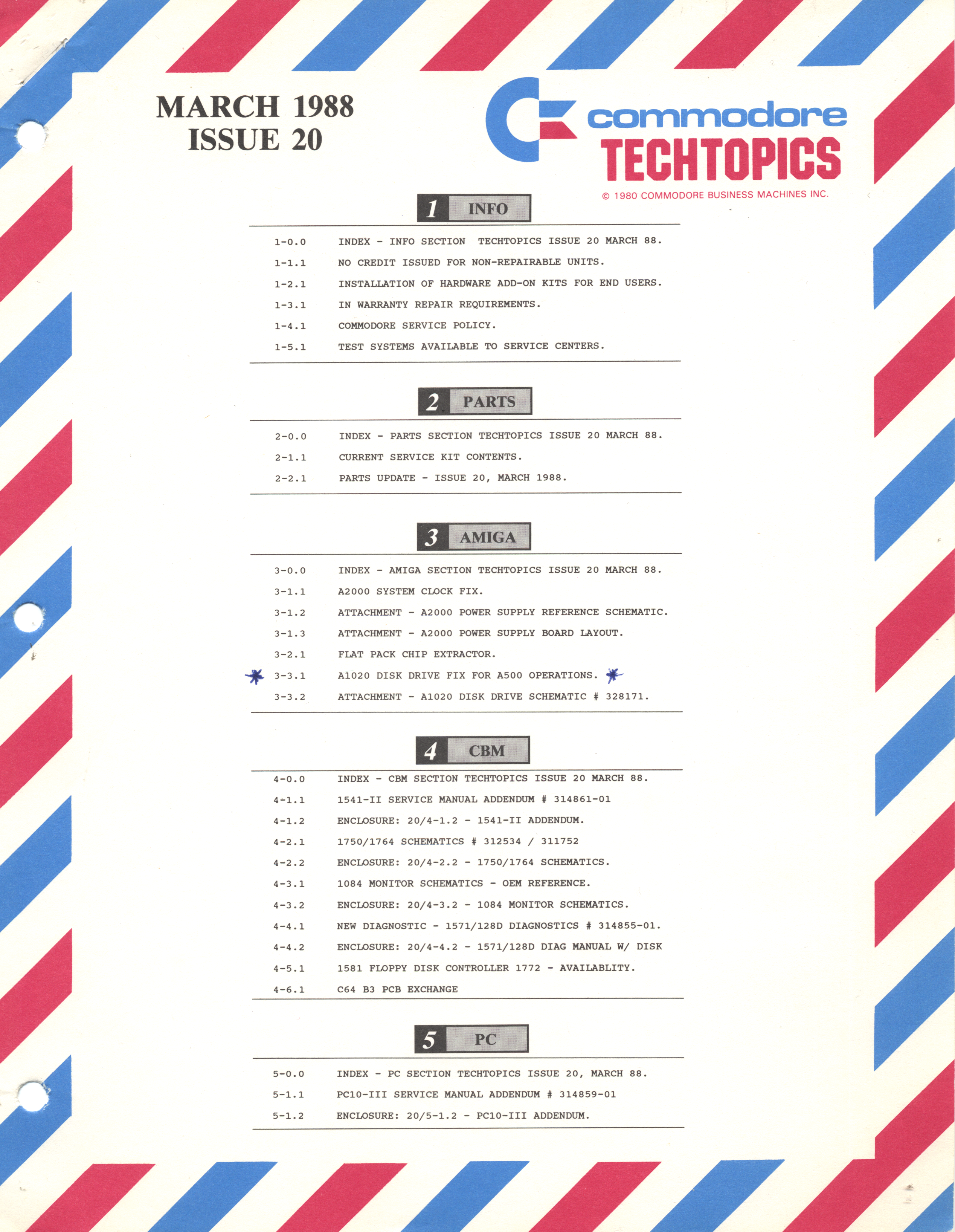

Table of Contents
See also http://www.devili.iki.fi/library/issue/165.en.html
Image002.png20-May-2006 19:452684557

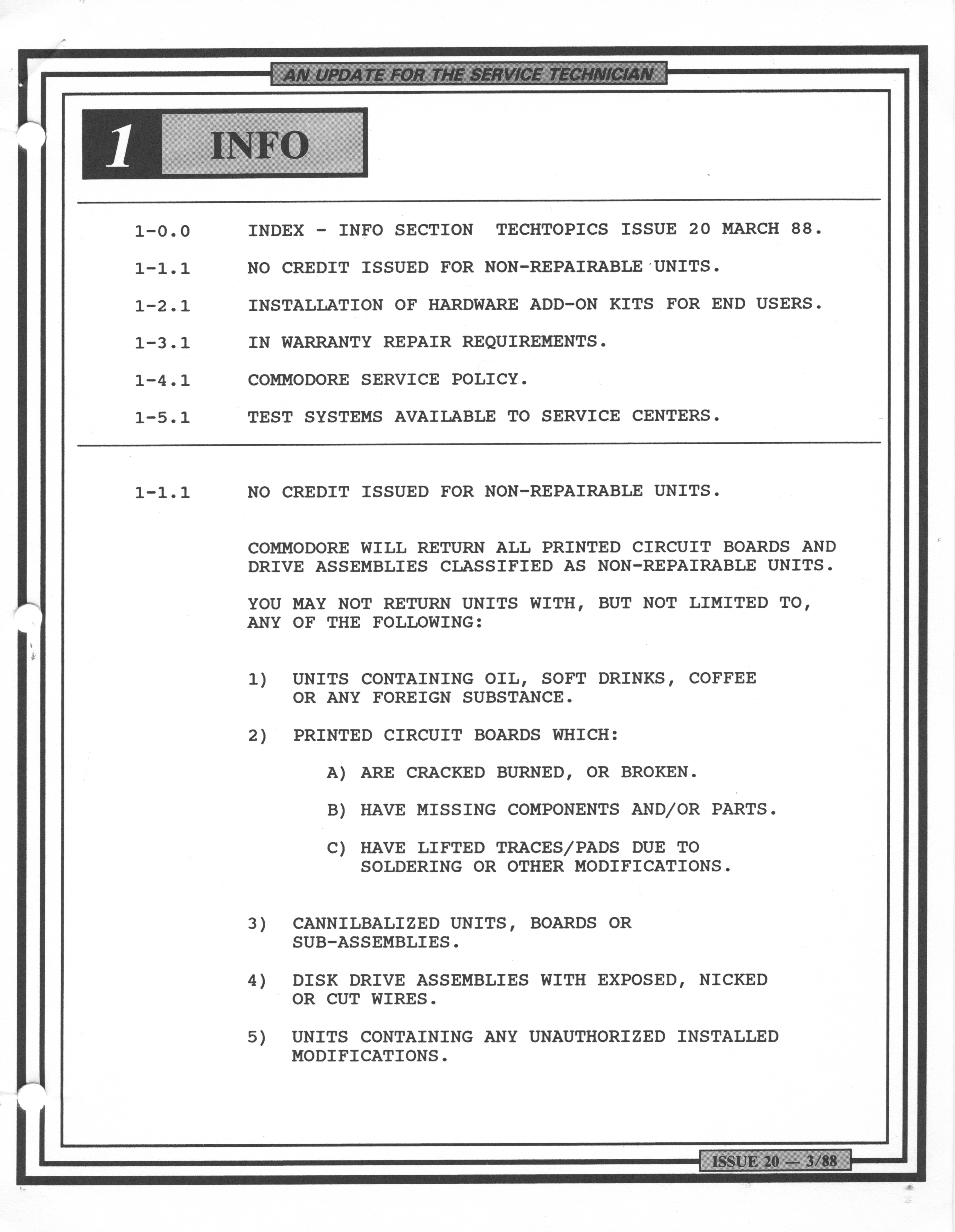

1-0.0 Index - Info Section Techtopics Issue 20 March 88
1-1.1 No Credit Issued For Non-Repairable Units
Image003.png20-May-2006 19:452646168
1-2.1 Installation Of Hardware Add-On Kits For End Users
1-3.1 In Warranty Repair Requirements
1-4.1 Commodore Service Policy
Image004.png20-May-2006 19:452378257

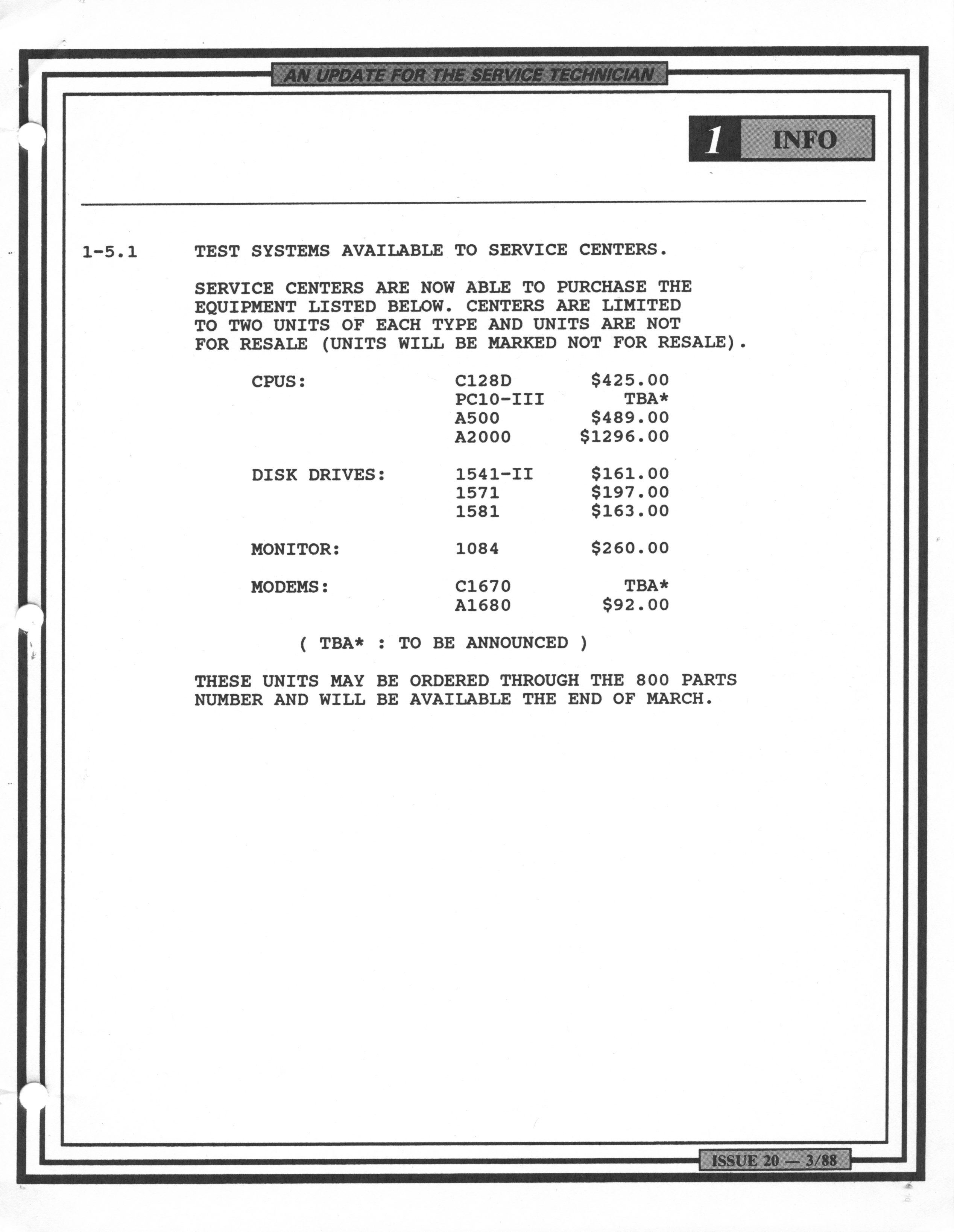

1-5.1 Test Systems Available To Service Centers
Image005.png20-May-2006 19:462776750

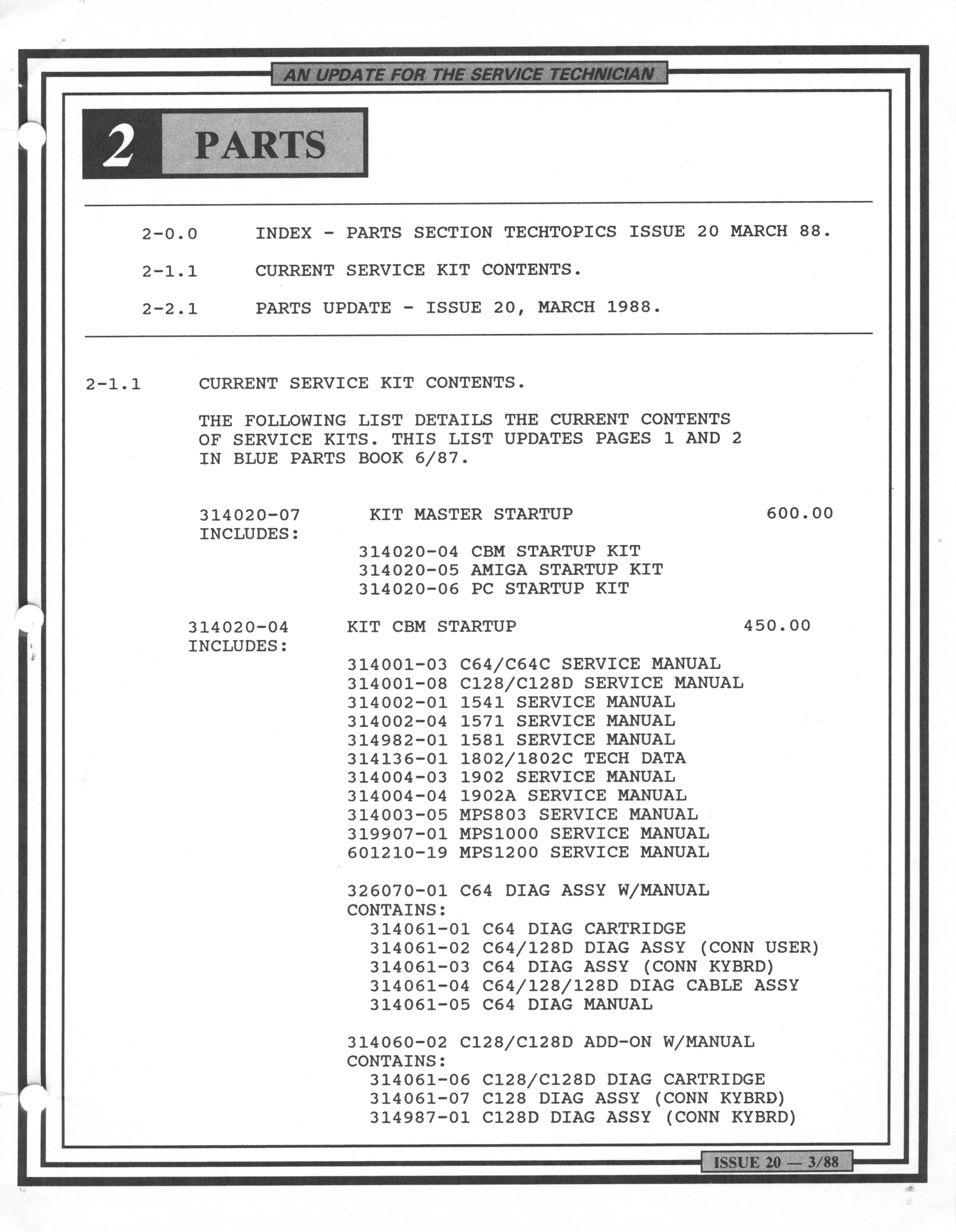

2-0.0 Index - Parts Section Techtopics Issue 20 March 88
2-1.1 Current Service Kit Contents
Image006.png20-May-2006 19:462541320

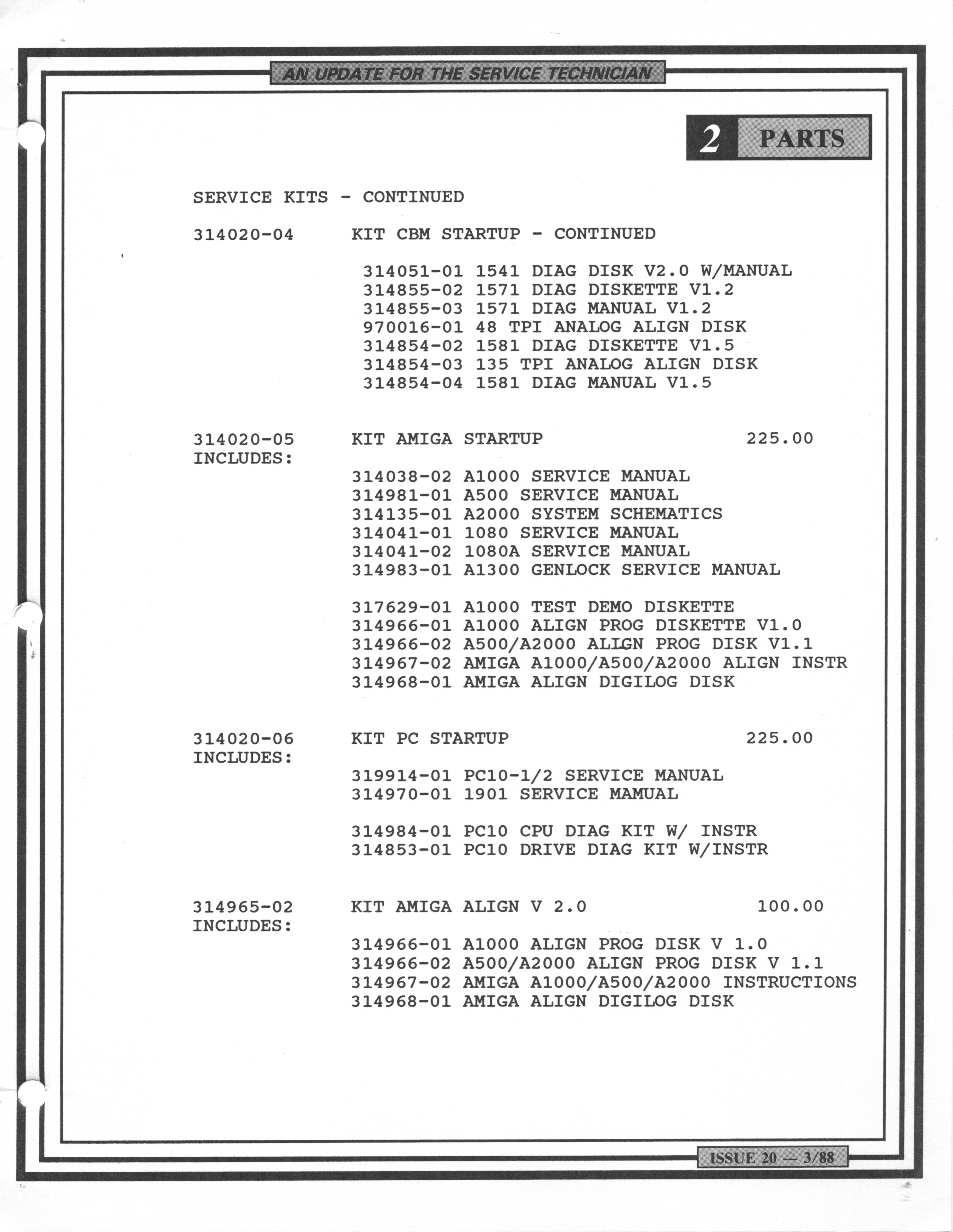

2-1.1 Current Service Kit Contents (cont.)
Image007.png20-May-2006 19:462557089

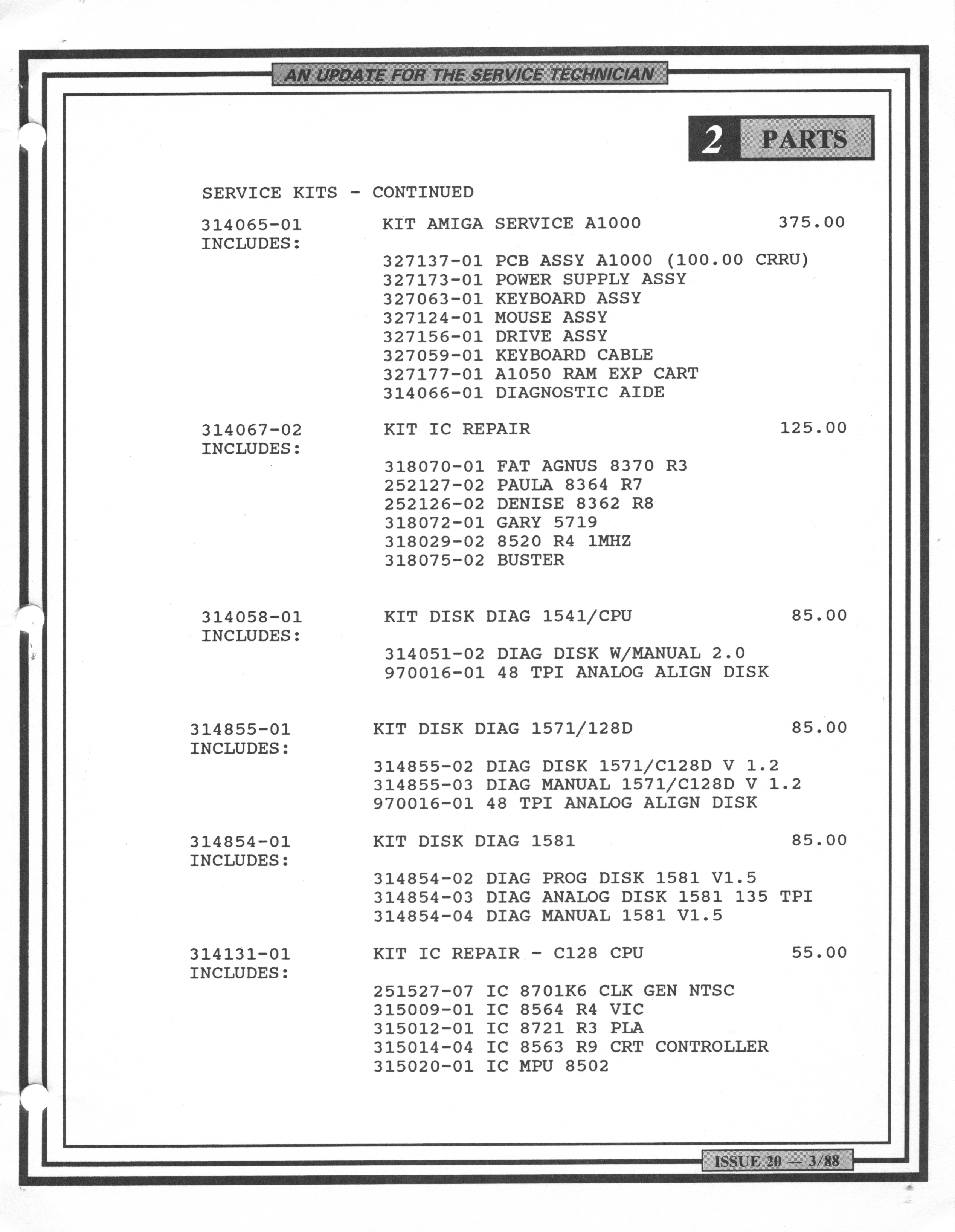

2-1.1 Current Service Kit Contents (cont.)
Image008.png20-May-2006 19:462360134

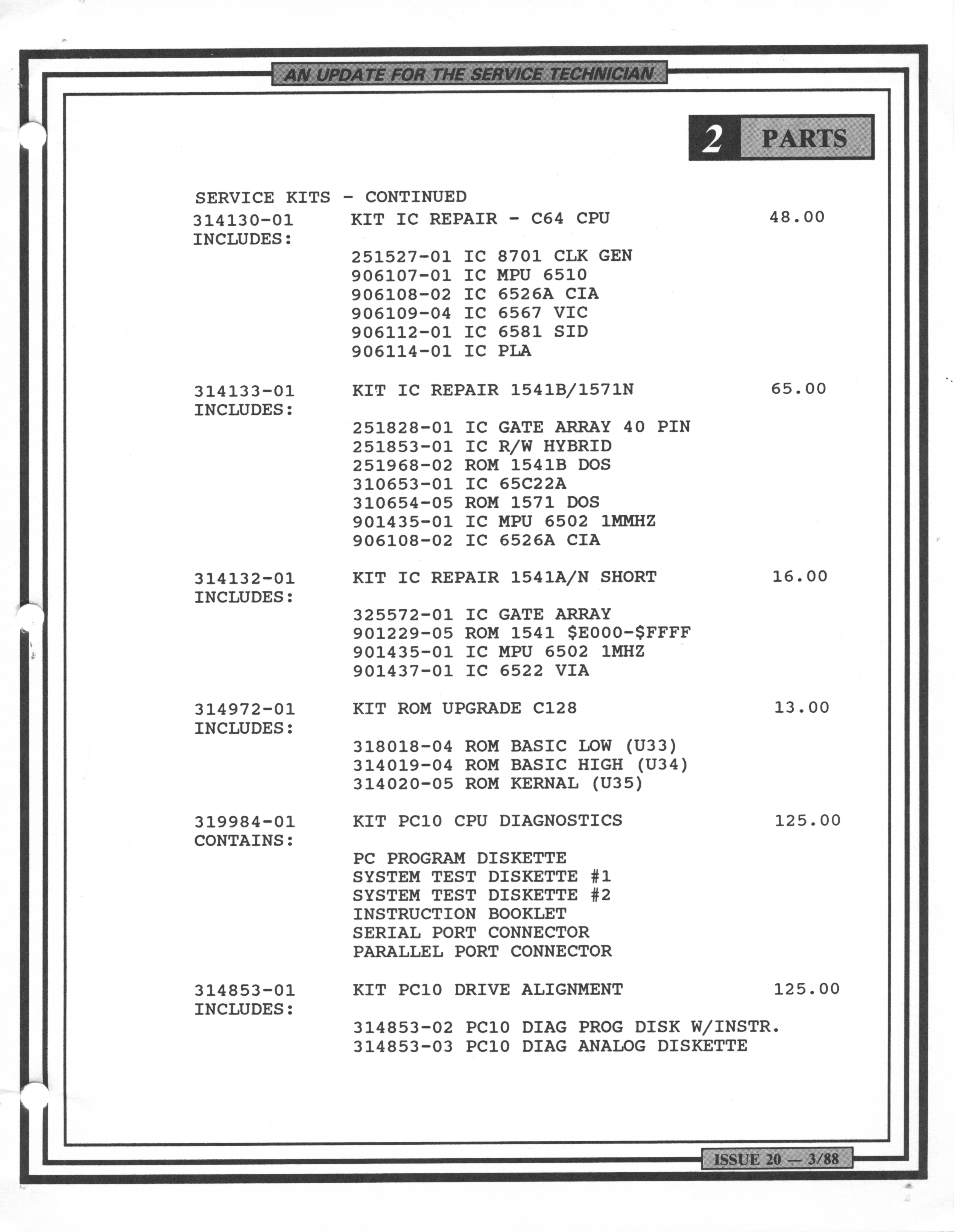

2-1.1 Current Service Kit Contents (cont.)
Image009.png20-May-2006 19:472104156
2-1.1 Current Service Kit Contents (cont.)
Image010.png20-May-2006 19:472940696

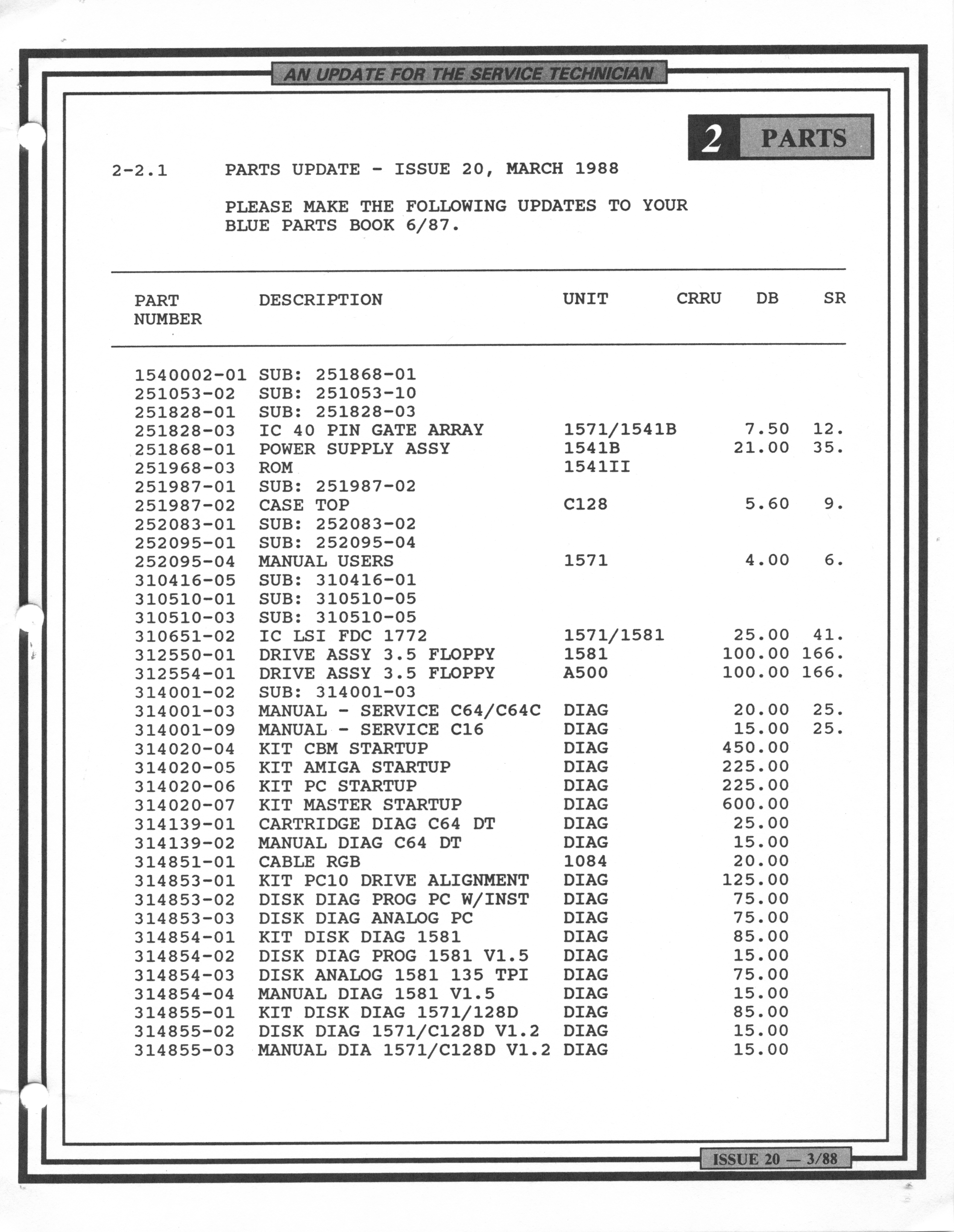

2-2.1 Parts Update - Issue 20, March 1988
Image011.png20-May-2006 19:472740576

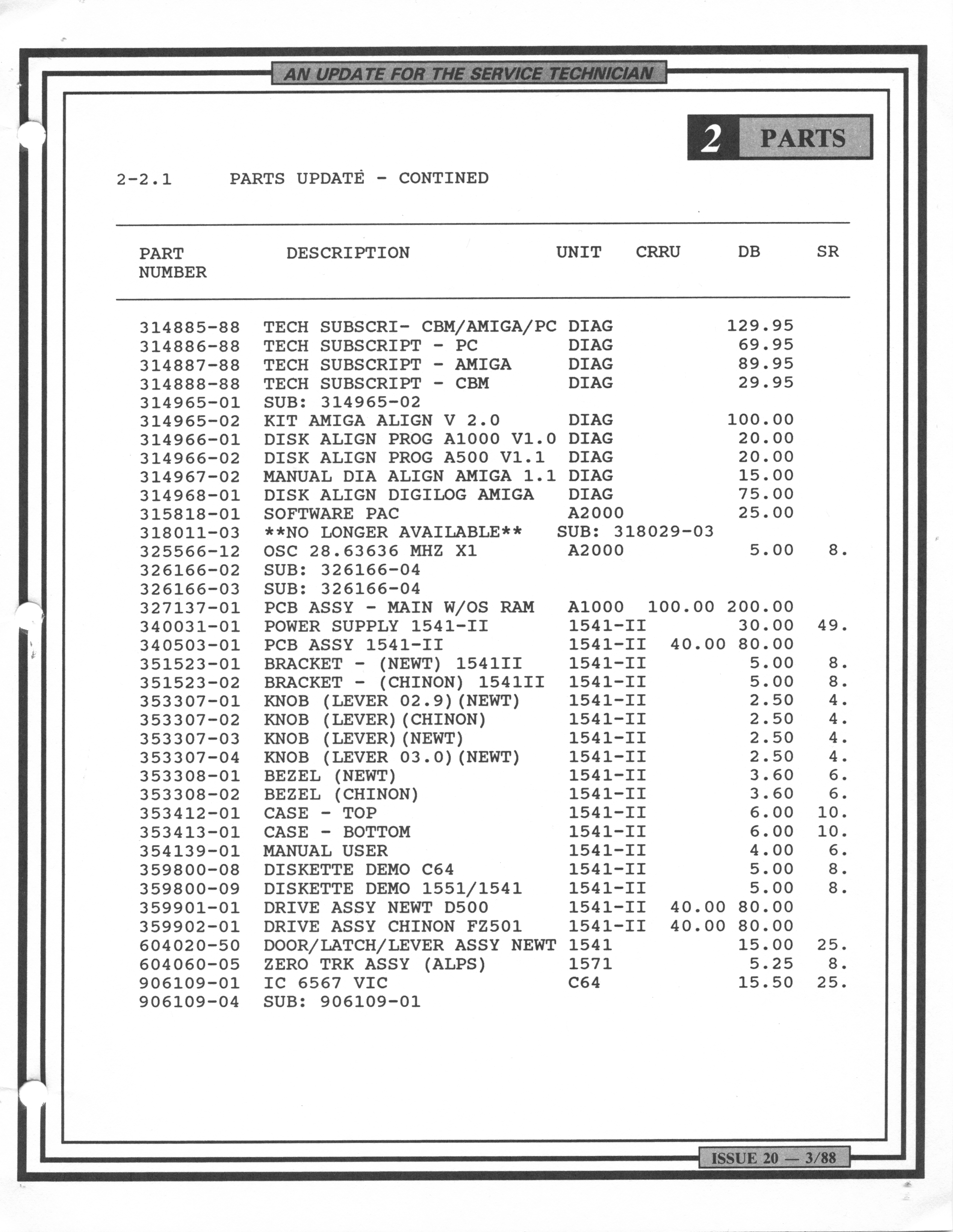

2-2.1 Parts Update - Issue 20, March 1988 (cont.)
Image012.png20-May-2006 19:472575518

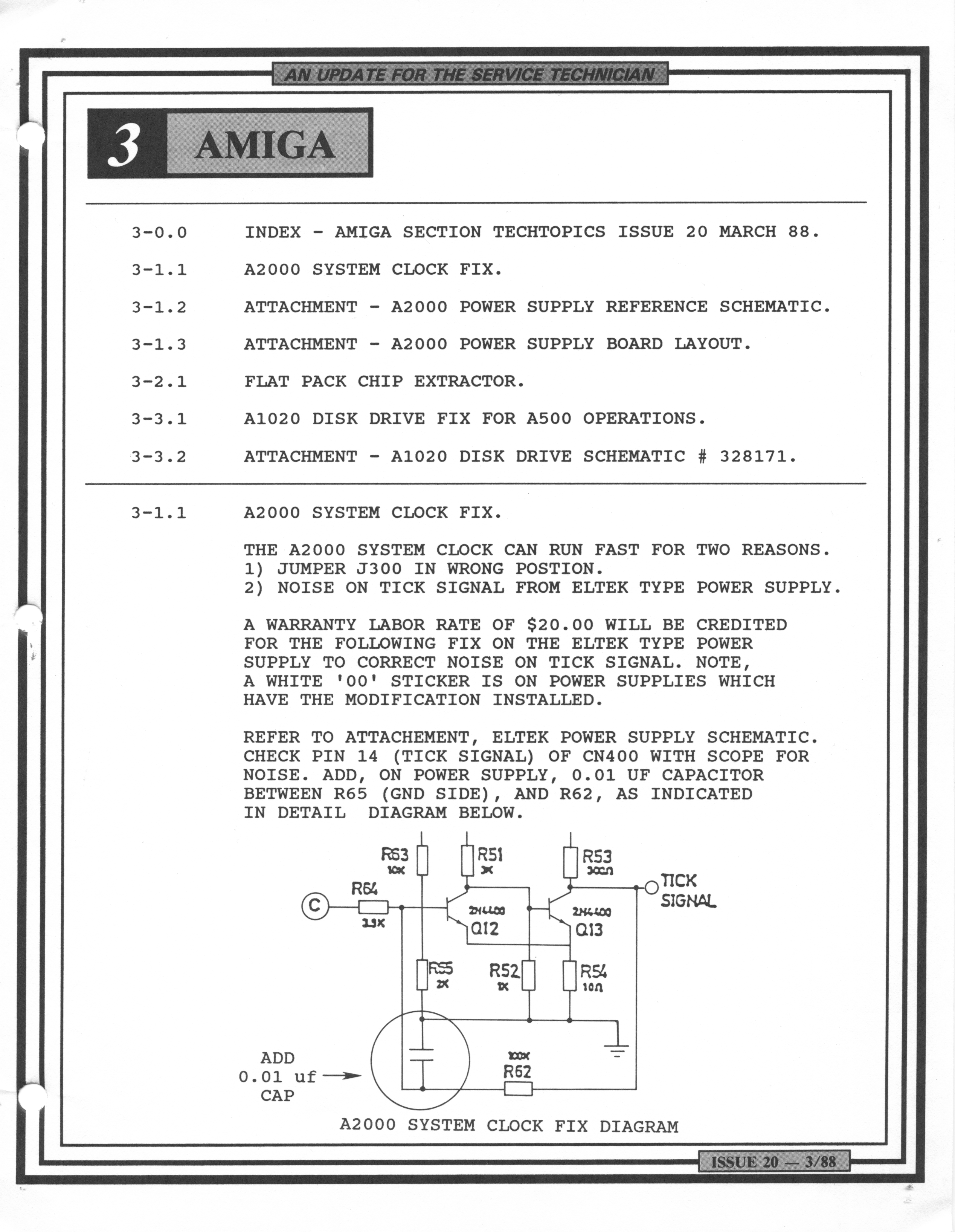

3-0.0 Index - Amiga Section Techtopics Issue 20 March 88
3-1.1 A2000 System Clock Fix
Image013.png20-May-2006 19:472696592

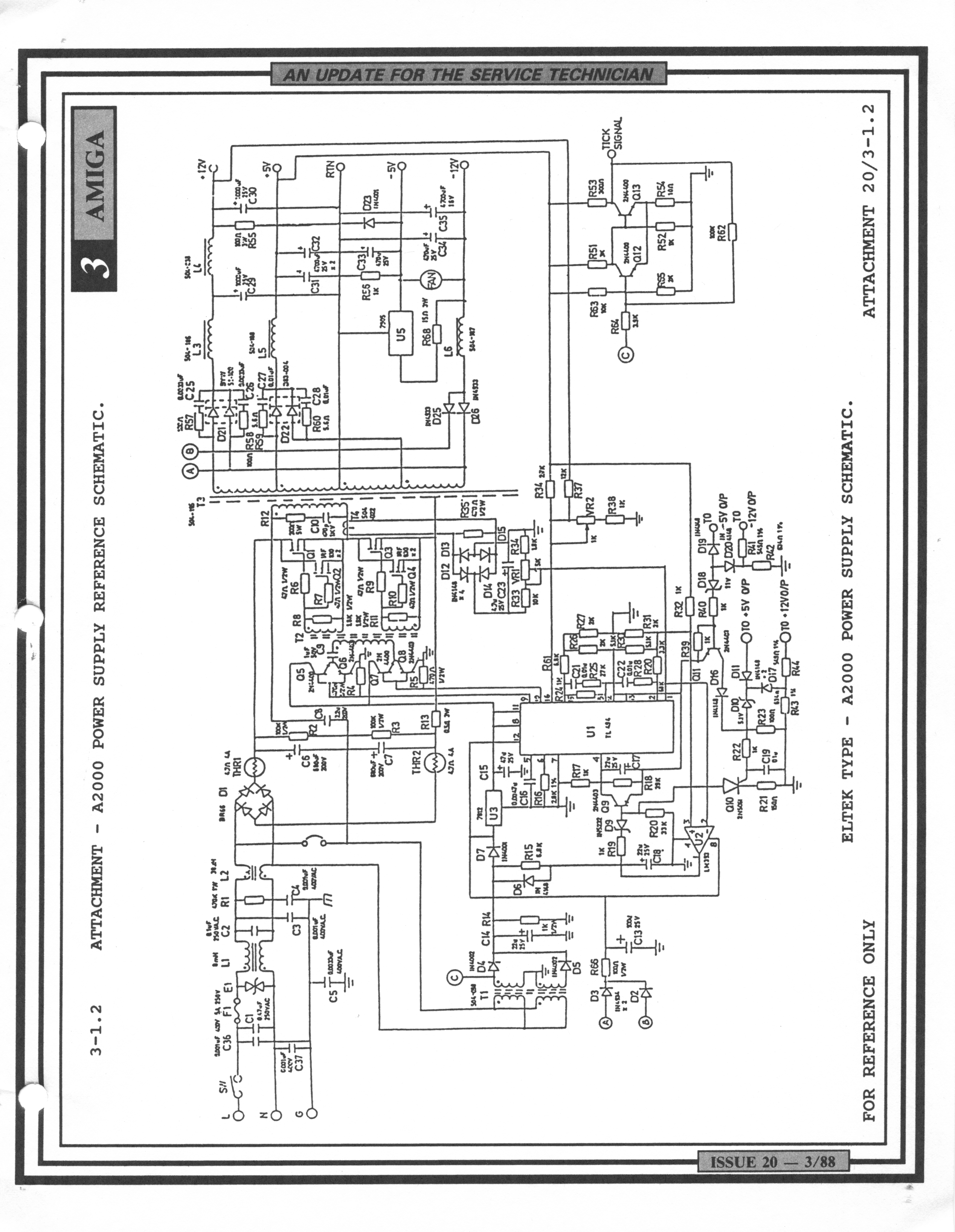

3-1.2 Attachment - A2000 Power Supply Reference Schematic
Image014.png20-May-2006 19:482457174

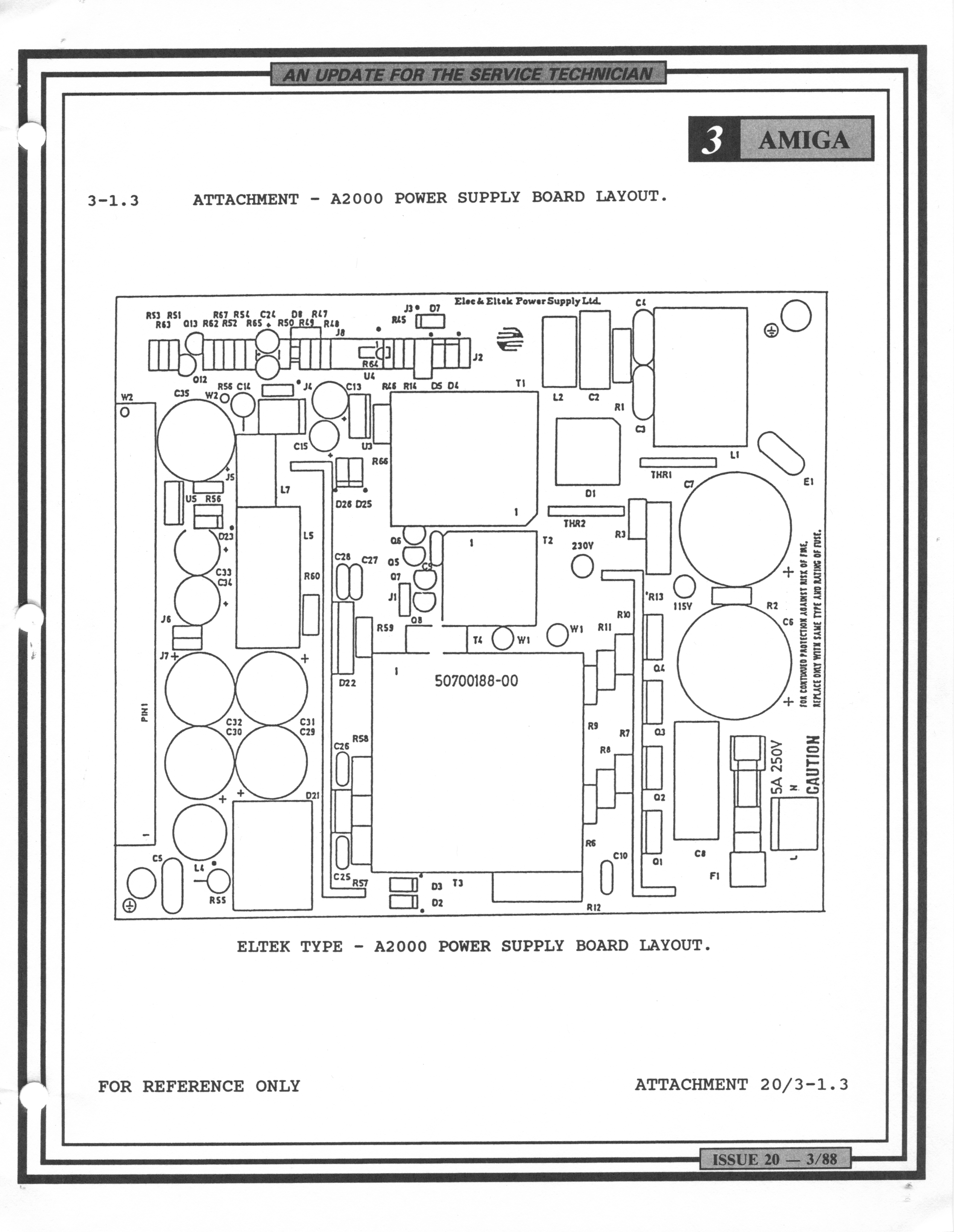

3-1.3 Attachment - A2000 Power Supply Board Layout
Image015.png20-May-2006 19:482518372

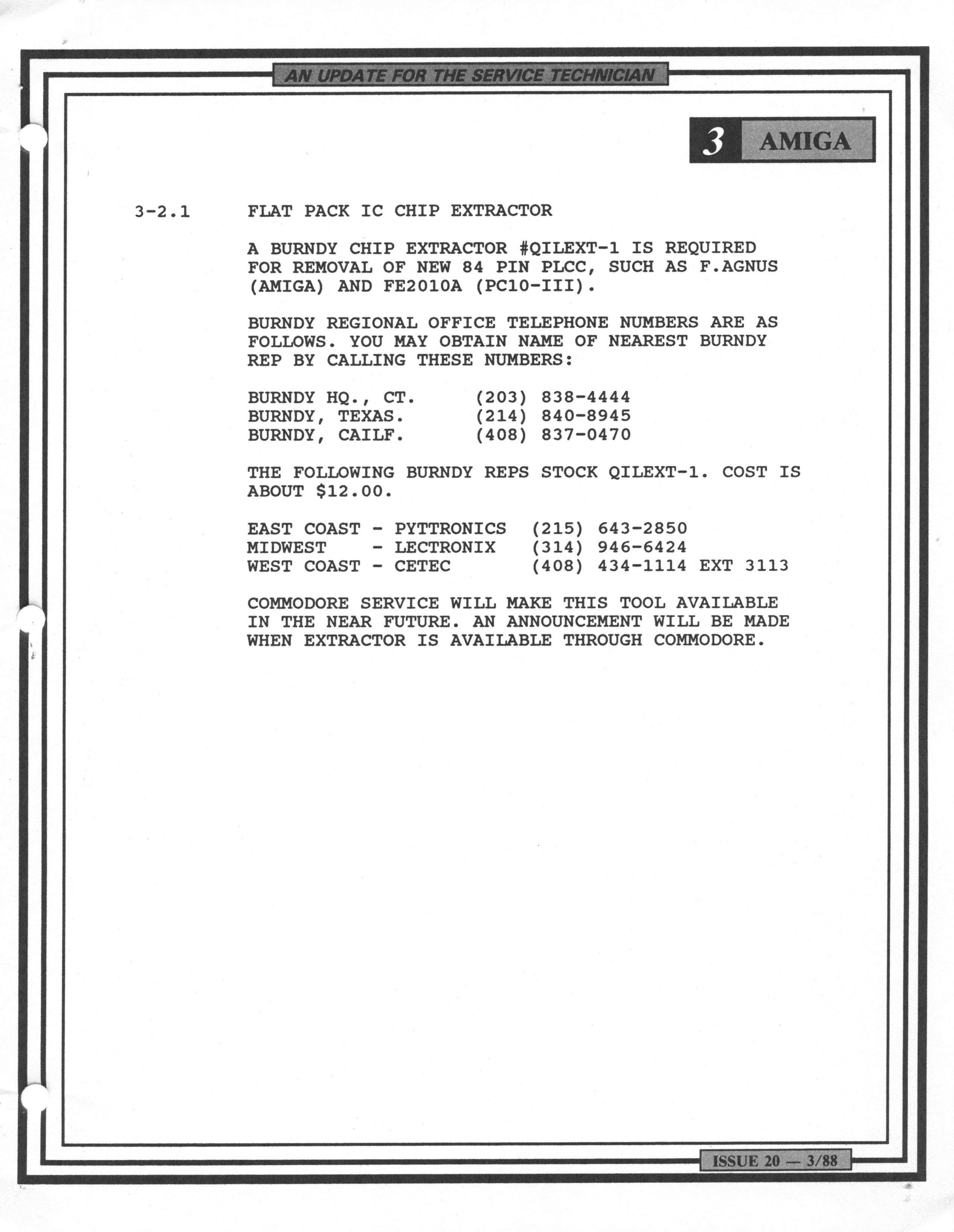

3-2.1 Flat Back Chip Extractor
Image016.png20-May-2006 19:482508670
3-3.1 A1020 Disk Drive Fix For A500 Operations
Image017.png20-May-2006 19:482490416

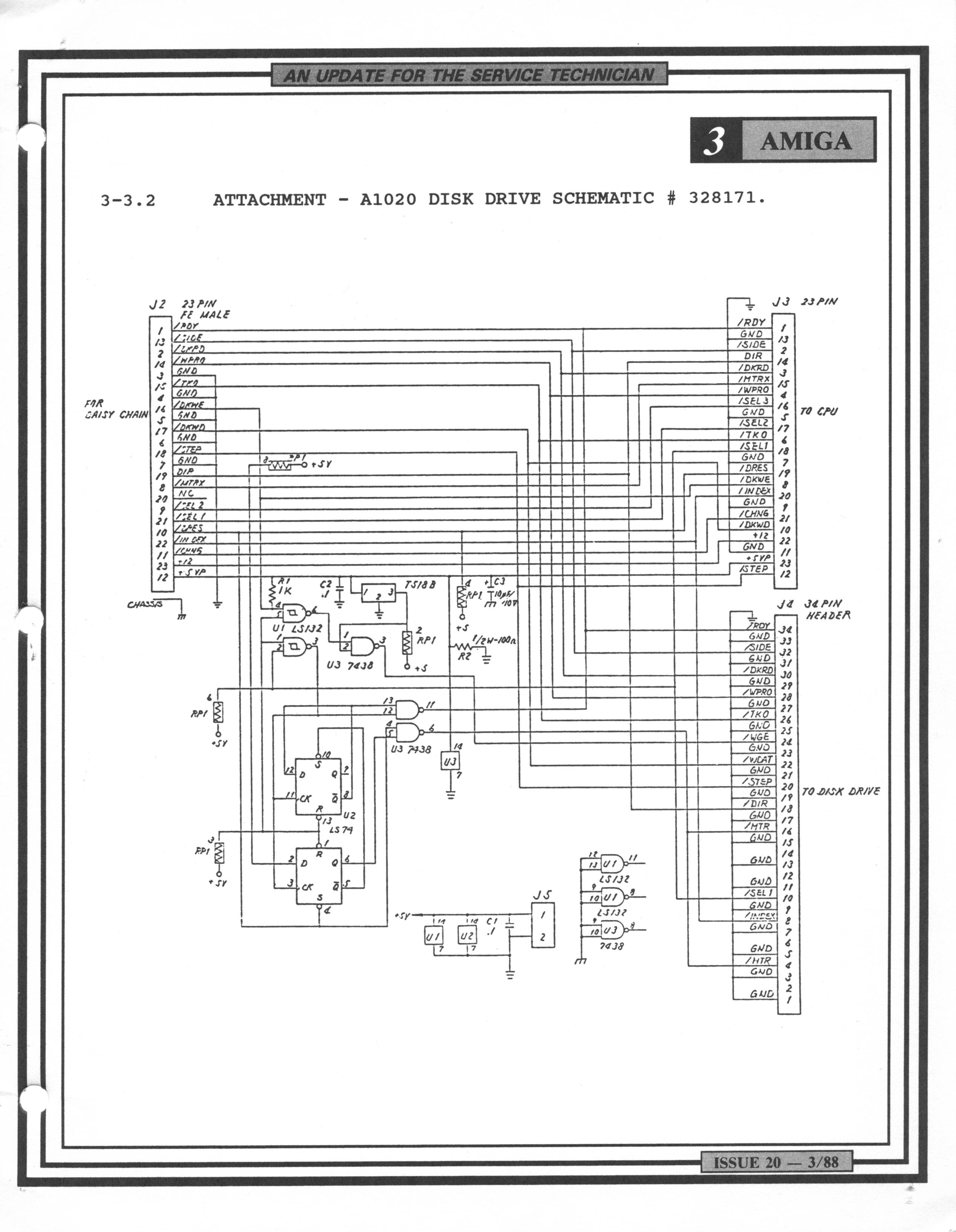

3-3.2 Attachment - A1020 Disk Drive Schematic # 328171
Image018.png20-May-2006 19:492887852
4-0.0 Index - CBM Section Techtopics Issue 20 March 88
Image019.png20-May-2006 19:492396366

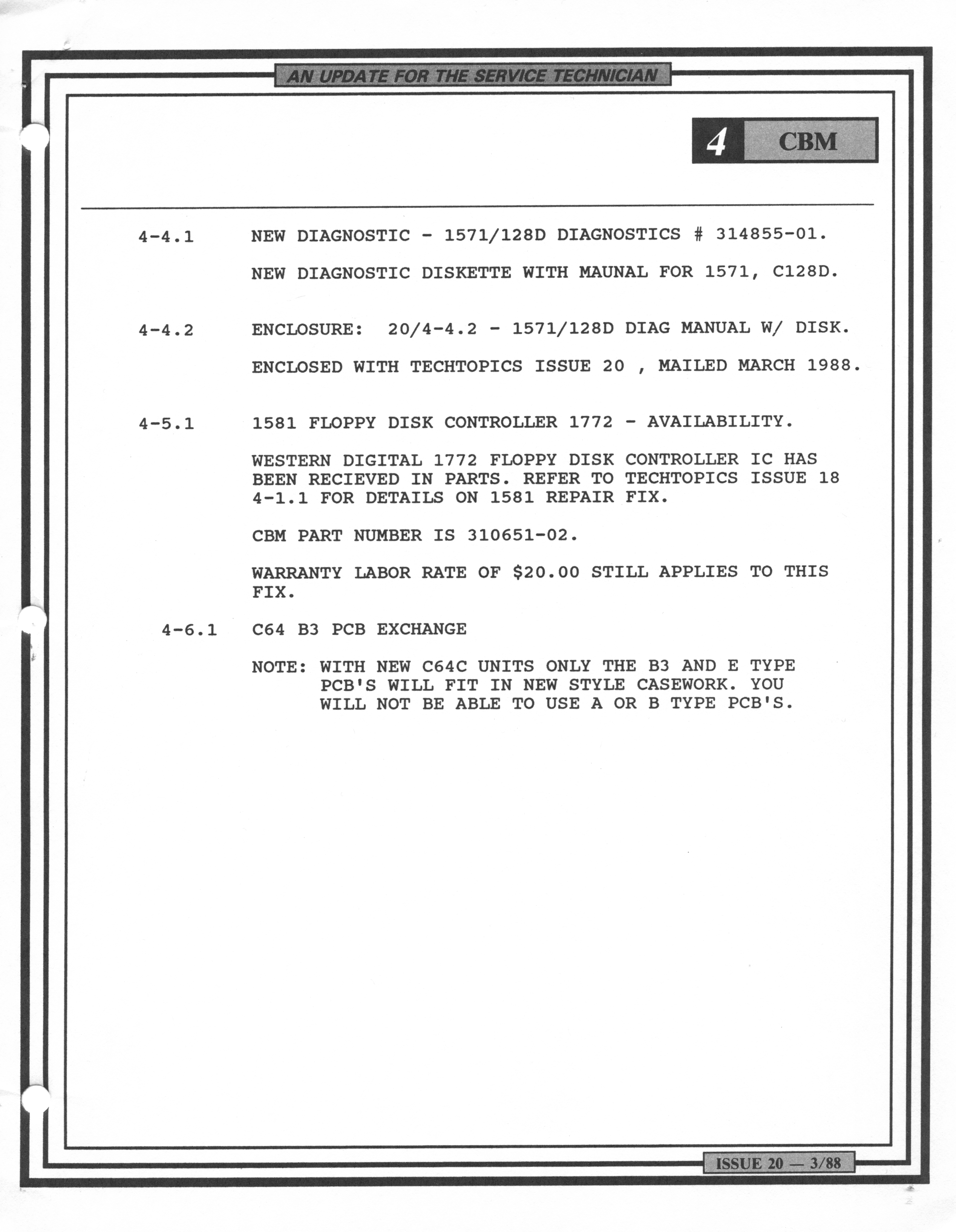

4-5.1 1581 Floppy Disk Controller 1772 - Availability
4-6.1 C64 B3 PCB Exchange
Image020.png20-May-2006 19:492091117

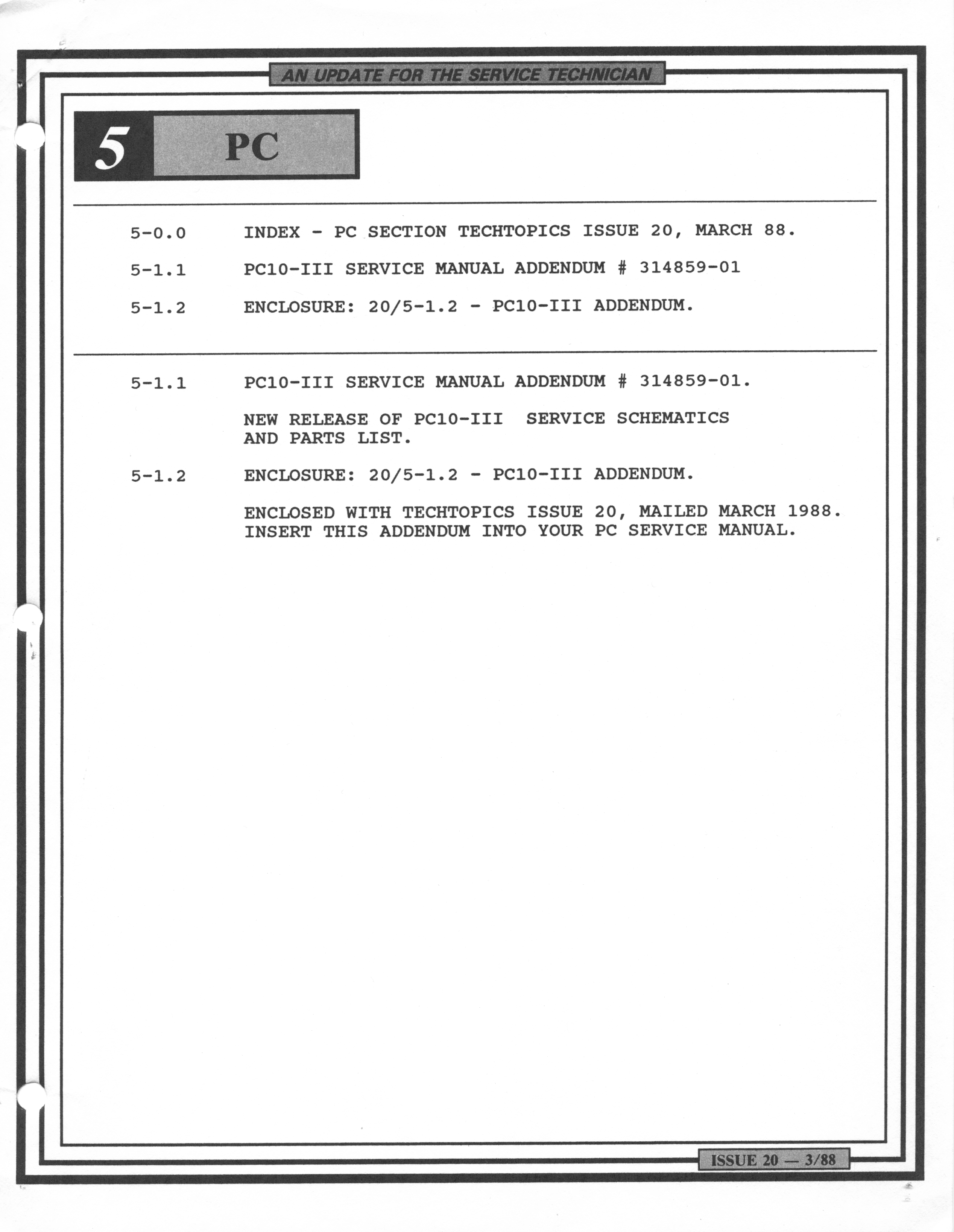

5-0.0 Index - PC Section Techtopics Issue 20, March 88
