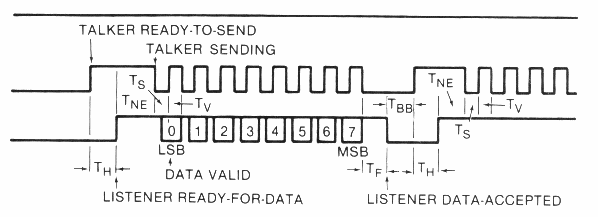

The Commodore 64 uses this signal to start a command sequence for a device on the serial bus. When the Commodore 64 brings this signal LOW, all other devices on the bus start listening for the Commodore 64 to transmit an address. The device addressed must respond in a preset period of time; otherwise, the Commodore 64 will assume that the device addressed is not on the bus, and will return an error in the STATUS WORD. (See Figure 6-4).
Description | Symbol | Min. | Typ. | Max. |
---|---|---|---|---|
ATN RESPONSE (REQUIRED)1 | TAT | - | - | 1000µs |
LISTENER HOLD-OFF | TH | 0 | - | infinite |
NON-EOI RESPONSE TO RFD2 | TNE | - | 40µs | 200µs |
BIT SET-UP TALKER4 | TS | 20µs | 70µs | - |
DATA VALID | TV | 20µs | 20µs | - |
FRAME HANDSHAKE3 | TF | 0 | 20 | 1000µs |
FRAME TO RELEASE OF ATN | TR | 20µs | - | - |
BETWEEN BYTES TIME | TBB | 100µs | - | - |
EOI RESPONSE TIME | TYE | 200µs | 250µs | - |
EOI RESPONSE HOLD TIME5 | TEI | 60µs | - | - |
TALKER RESPONSE LIMIT | TRY | 0 | 30µs | 60µs |
BYTE-ACKNOWLEDGE4 | TPR | 20µs | 30µs | - |
TALK-ATTENTION RELEASE | TTK | 20µs | 30µs | 100µs |
TALK-ATTENTION ACKNOWLEDGE | TDC | 0 | - | - |
TALK-ATTENTION ACK. HOLD | TDA | 80µs | - | - |
EOI ACKNOWLEDGE | TFR | 60µs | - | - |
Notes: | |
1. | If maximum time exceeded, device not present error. |
2. | If maximum time exceeded, EOI response required. |
3. | If maximum time exceeded, frame error. |
4. | Tv and Tpr minimum must be 60µs for external device to be a talker. |
5. | Tei minimum must be 80µs for external device to be a listener. |
