ISSUE 4, 1985 : DISK DRIVE 1

MODEL: SFD 1001

NOTE: There have been a limited number of SFD 1001s sold. This product is NOT covered under our current CONSUMER SERVICE PROGRAM. Therefore, ALL requests for service on these units must be referred back to the SELLER.

However, we have received several requests for information regarding the change of the device number. Since the alteration is not a repair, you may wish to provide your customers with this service.

1. DEVICE NUMBER CHANGE FOR SFD 1001

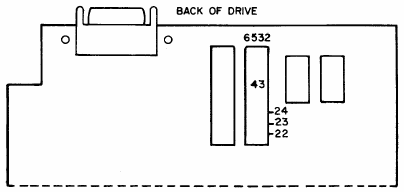

   1. To change the device number, the pins of the 6532 IC, located at 4J, must be bent out of the IC socket.

   2. To change to device number ( ).
      (9) Lift out pin 24
      (1O) Lift out pin 23
      (11) Lift out pins 23 & 24
      (12) Lift out pin 22
      (13) Lift out pins 22 & 24
      (14) Lift out pins 22 & 23
      (15) Lift out pins 22 & 23 & 24
