SHUGART SERVO BOARD
(COMMODORE PART #31414701)

PARTS LIST

INTEGRATED CIRCUITS
1A LM 2917N
TRANSISTORS
Q1 GE 7941 sub: GE 7947
Q2 M10060-0
DIODES
CR1-7 1N4148
RESISTORS - Ceramic 1/8W All Values are in ohms at 5% unless noted otherwise.
R1 100 1%, 1/8W
R2 909 1%, 1/8W
R3 10K
R4 4.7K
R5 40.2K 1%, 1/8W
R6 160K
R7 12
R8 27K
R9 470
R10 23.2K 1%, 1/8W
R11 7.5K, 1%, 1/8W
R12 68
R13 68
R14 2K
R15 150
R16 .68, 5%, 1W
R17 5K Trim Pot Rectangle, 3/4 in.
R18 20K

[Component locations - Assembly #25181] [Component locations - Assembly #25129]

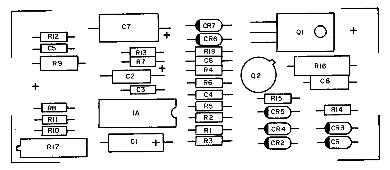

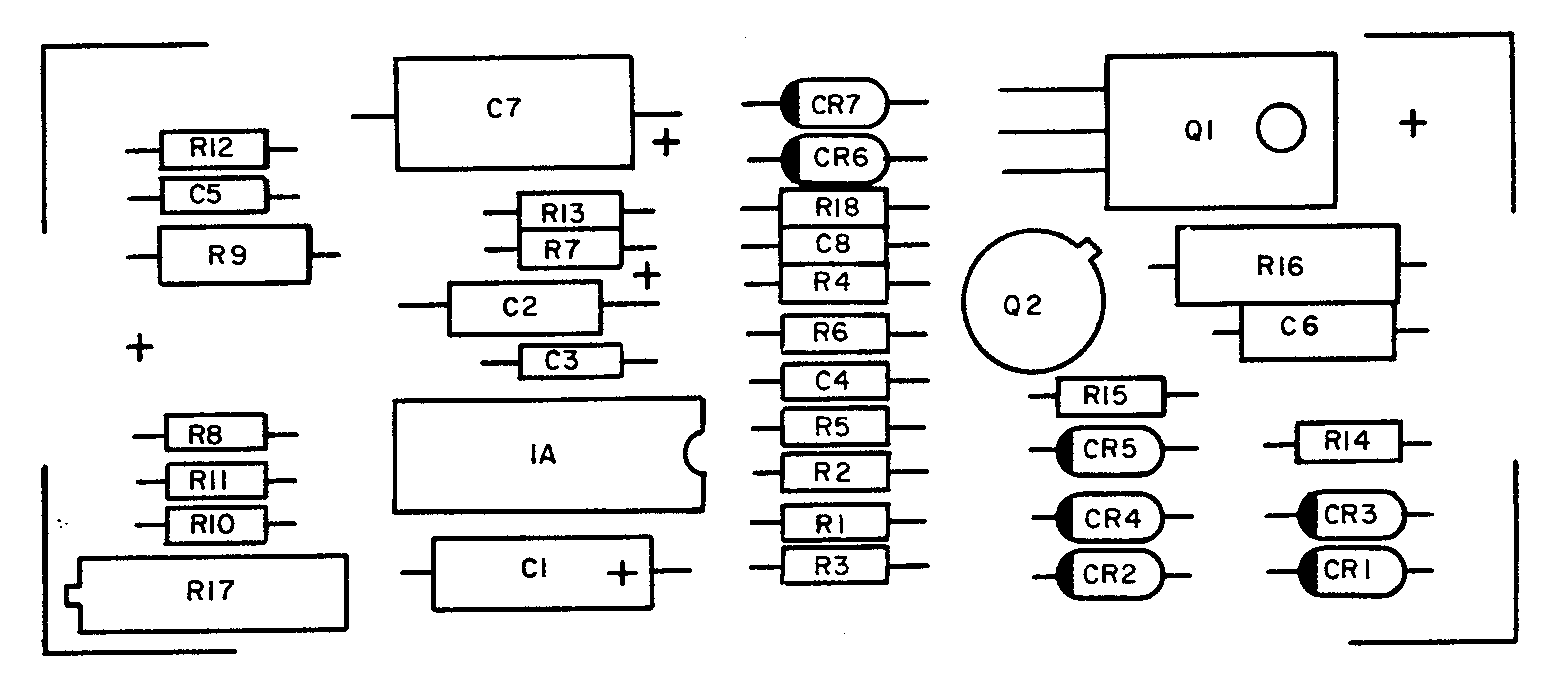

COMPONENT LOCATIONS
MOTOR CONTROL PCB ASSEMBLY P/N 25181

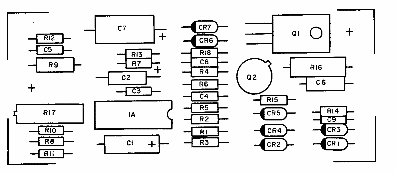

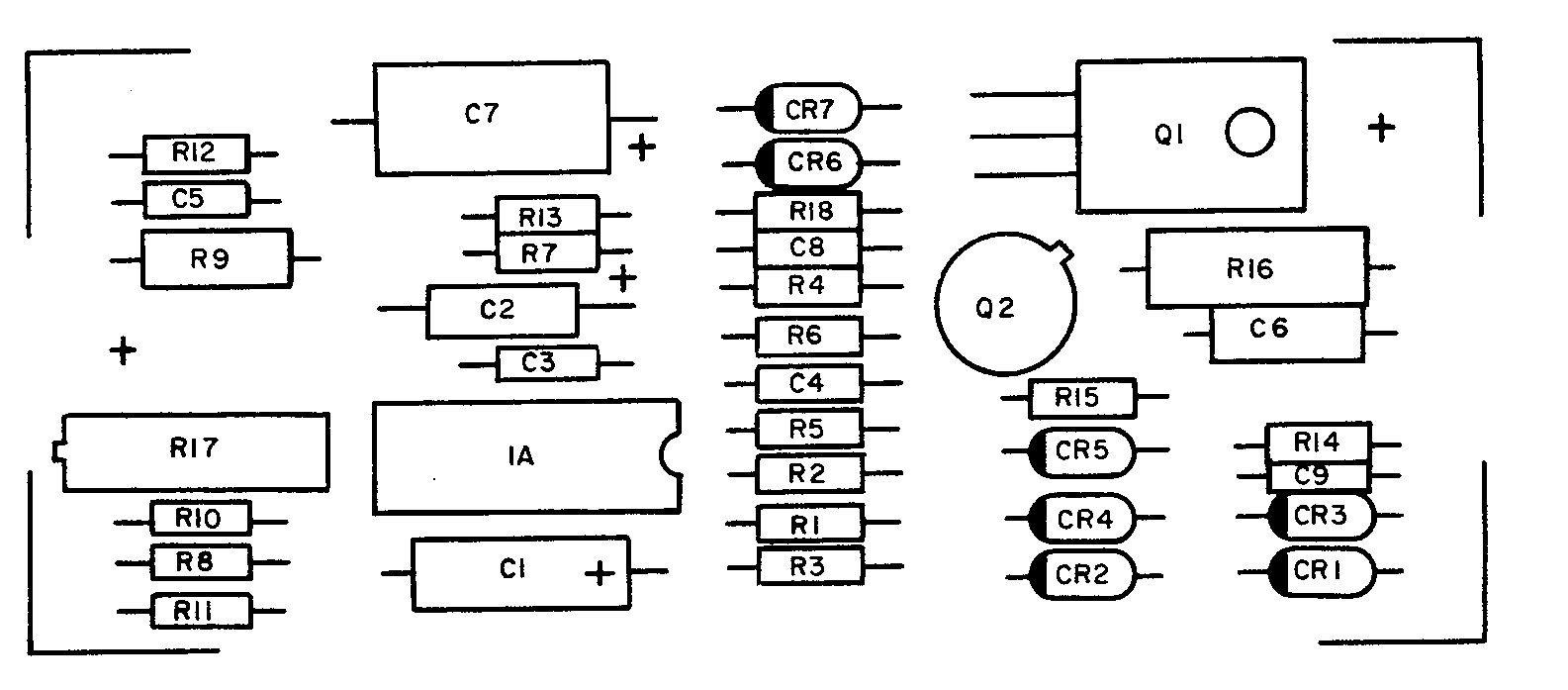

COMPONENT LOCATIONS
MOTOR CONTROL PCB ASSEMBLY P/N 25129
[Schematic]

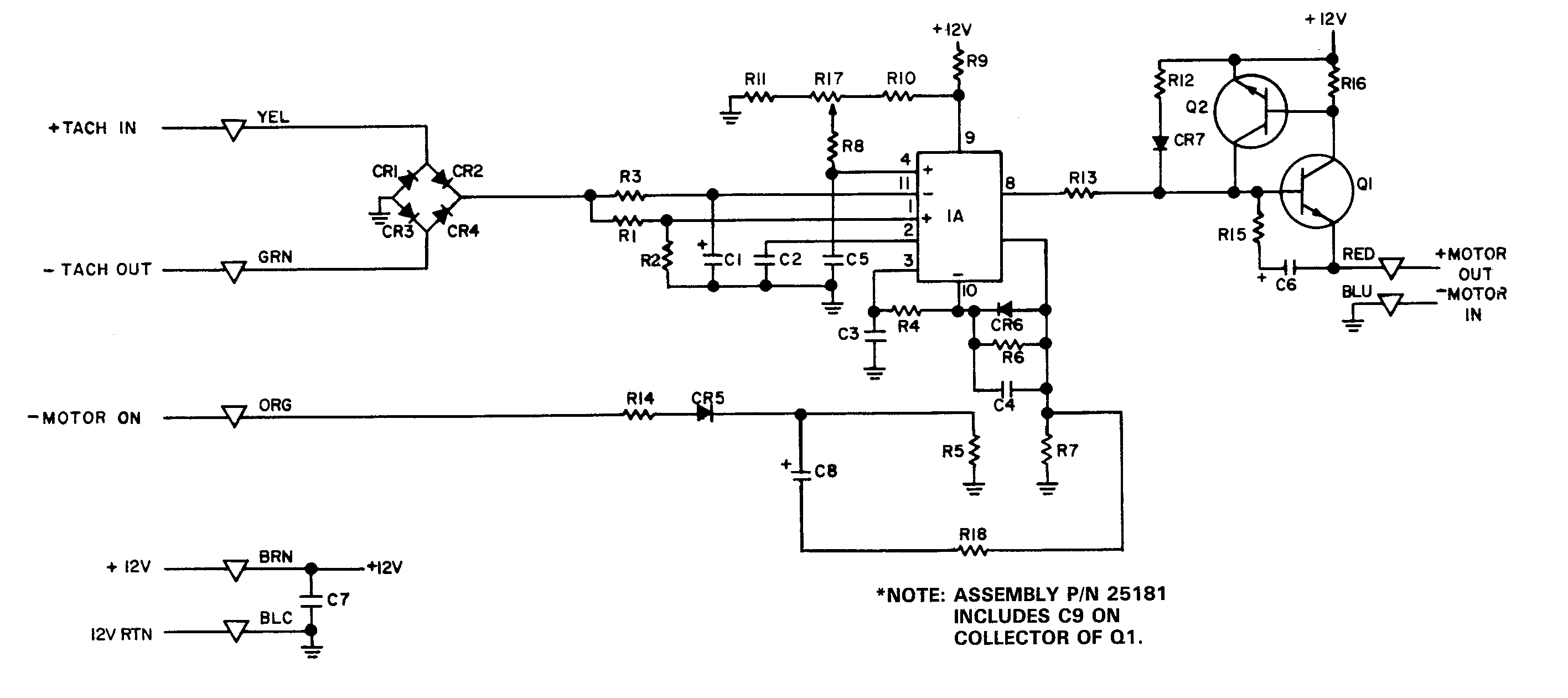

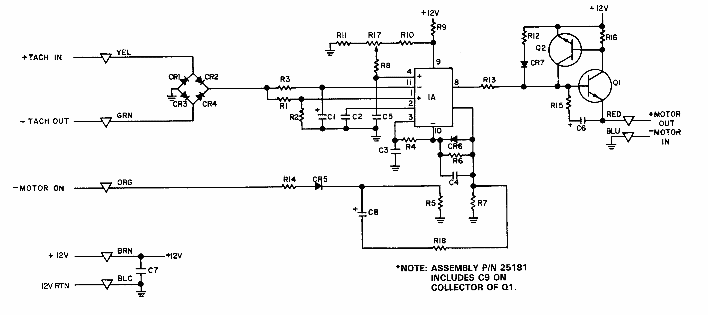

SCHEMATIC
