U3, U5, U19 PINOUTS ON PAGE 8

PIN
CONFIGURATION

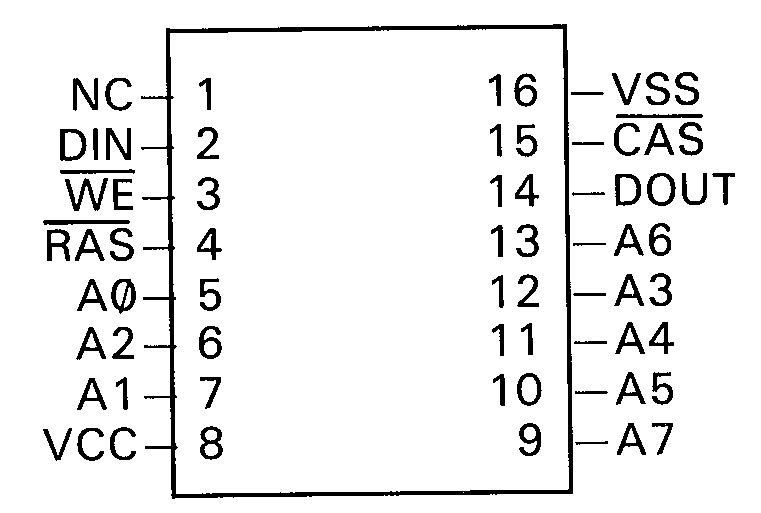

[DRAM pinout]
U11-18
64K DYNAMIC RAM
901505-01
COMMODORE PART NUMBERAPPROVED SOURCE OF SUPPLYVENDOR PART NUMBERACCESS TIME (ns)CYCLES (ns)POWER
ACTIVE (MW)STANDBY (MAX)(MW)
901505-01HITACHI HM4864-3 20033533020
901505-01NEC µPD4164-220037525028
901505-01MITSUBISHI M5K416NS-20 20033027528
901505-01MOSTEK MK456N-20 20034530022
901505-01OKI MSM3764-20 20033024823
901505-01HITACHI HM4864P-3 20033533020
901505-01MATSUSHITA (PANASONIC)MN4164P-20 20033027527.5
901505-01SIEMENS HYB4164-3 20033015020
901505-01SHARP LH2164-Z1 20033024828
901505-01HITACHI HM4864AP-3 20033024220
901505-01TOSHIBA TMM4164AP-20 20033027527

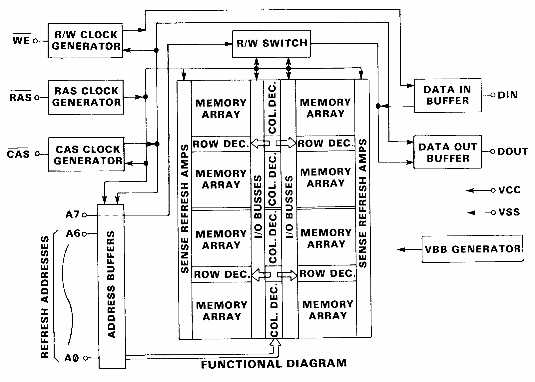

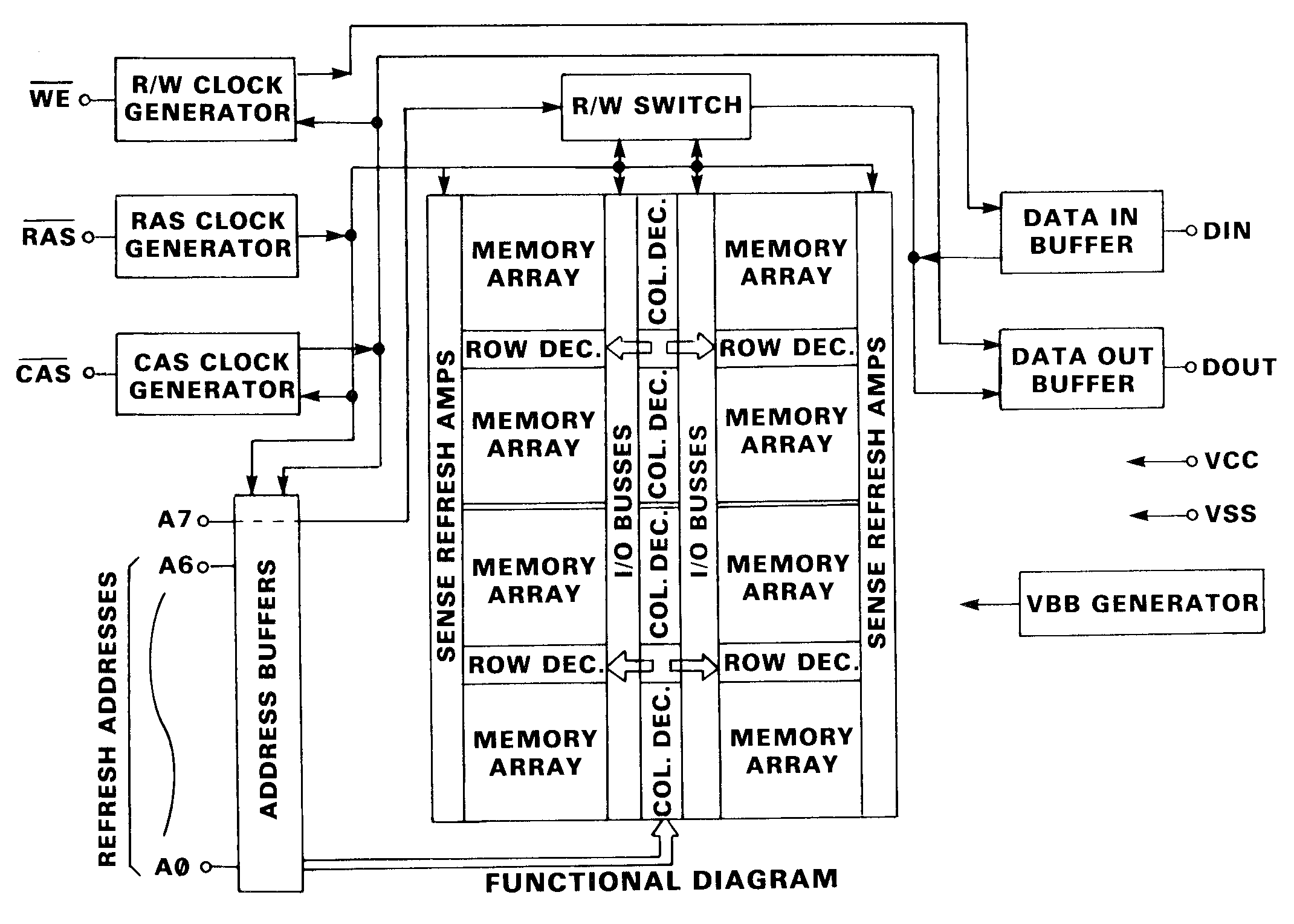

[DRAM functional diagram]

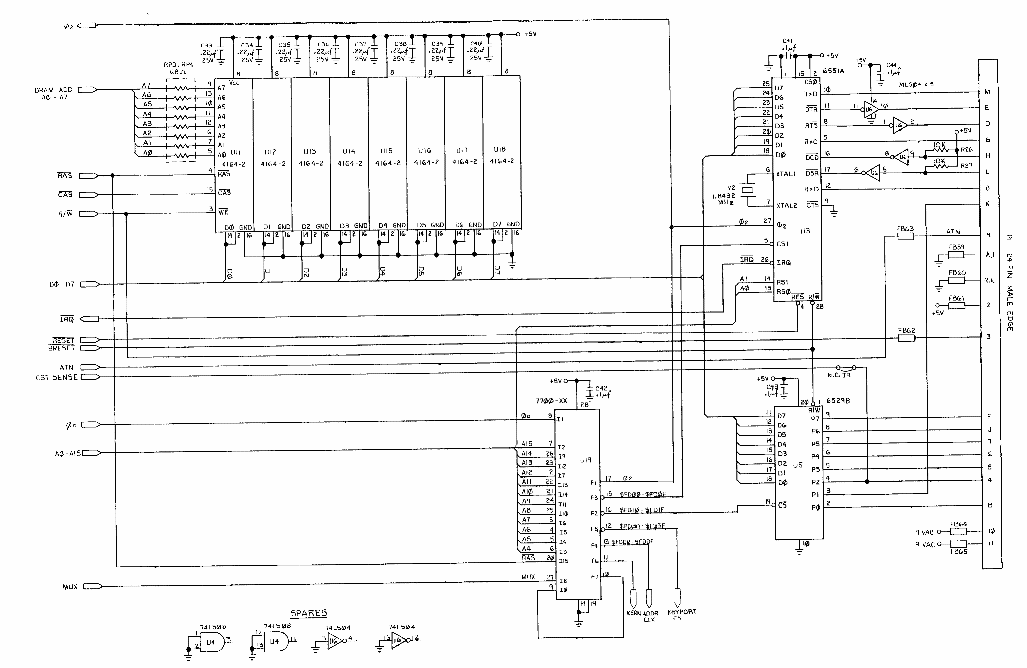

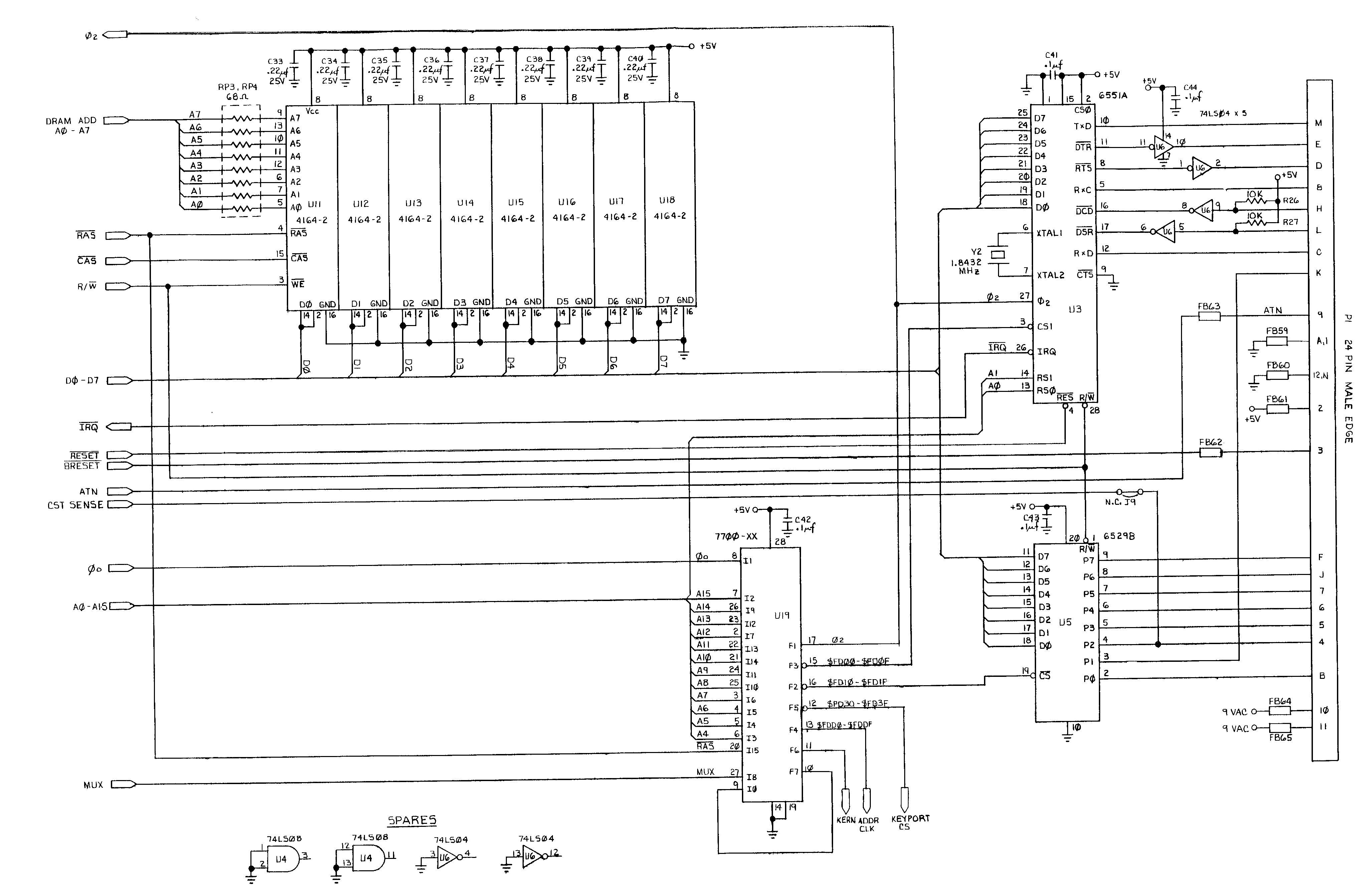

[Plus 4 schematic #310164 (3 of 4)]
Plus 4 Schematic #310164 (3 of 4)
